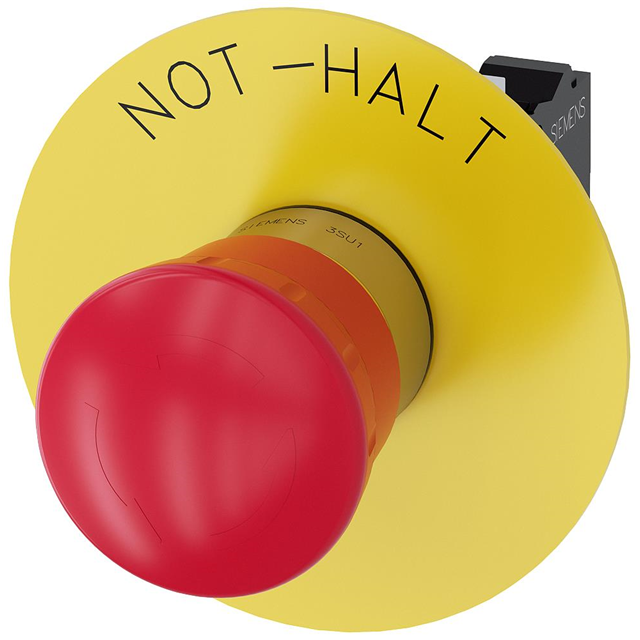

Specification	3SU11501HB203CH0

Circuit	SPST-NC
Current Rating	10 A
Ingress Protection Description	Waterproof, Water Resistant, Dust Tight
Ingress Protection IP Rating	IP66, IP67, IP69K
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	22.3 mm
Panel Cutout Shape	Circular
Reset Operation	Twist
Switch Function	On-Off
Termination Style	Spring Terminal
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

3SU1150 Series

Part	Current Rating	Contact Material	Ingress Protection Description	Ingress Protection IP Rating	Output	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Voltage Rating - AC	Actuator Type	Panel Cutout Diameter	Panel Cutout Shape	Type	Mounting Type	Switch Function	Voltage Rating - DC	Mechanical Life (Cycles)	Electrical Life (Cycles)	Circuit	Reset Operation	Contact Finish	Removable Positions	Angle of Throw	Number of Positions	Depth Behind Flange	Color - Actuator/Cap
Siemens 3SU11507AB881NA0	10 A	Silver Alloy	Dust Tight Water Resistant Waterproof	IP65 IP67	Digital (Mechanical Switch)	70 °C	-25 °C	Screw Terminal	500 V	Joystick	22.3 mm	Circular	2 - Axis Joystick	Panel Mount	360° Directional	500 V	100000 Cycles	10000000
Siemens 3SU11501HB201CH0	10 A		Dust Tight Water Resistant Waterproof	IP66 IP67 IP69K		70 °C	-25 °C	Screw Terminal	500 V		22.3 mm	Circular		Front Panel Mount	On-Off	500 V			SPST-NC	Twist
Siemens 3SU11504BF111FA0	10 A	Silver Alloy				70 °C	-25 °C	Screw Terminal	500 V	Flat Key	22.3 mm	Circular		Panel Mount	Off-On On-Off	500 V	300000 Cycles	10000000	DPST-NO/NC		Silver	All	90 °	2	49.4 mm
Siemens 3SU11500AB303FA0	10 A		Dust Tight Water Resistant Waterproof	IP66 IP67 IP69K		70 °C	-25 °C	Spring Terminal	500 V	Button Round	22.3 mm	Circular	Standard	Front Panel Mount	Off-Mom On-Mom	500 V	10000000 Cycles	10000000	DPST-NO/NC							Yellow
Siemens 3SU11504BF113FA0	10 A	Silver Alloy				70 °C	-25 °C	Spring Terminal	500 V	Flat Key	22.3 mm	Circular		Panel Mount	Off-On On-Off	500 V	300000 Cycles	10000000	DPST-NO/NC		Silver	All	90 °	2	49.4 mm
Siemens 3SU11500AB601FA0	10 A		Dust Tight Water Resistant Waterproof	IP66 IP67 IP69K		70 °C	-25 °C	Screw Terminal	500 V	Button Round	22.3 mm	Circular	Standard	Front Panel Mount	Off-Mom On-Mom	500 V	10000000 Cycles	10000000	DPST-NO/NC							White
Siemens 3SU11500BB101BA0	10 A		Dust Tight Water Resistant Waterproof	IP66 IP67 IP69K		70 °C	-25 °C	Screw Terminal	500 V	Button Round	22.3 mm	Circular	Standard	Front Panel Mount	Off-Mom	500 V	10000000 Cycles	10000000	SPST-NO							Black
Siemens 3SU11501HA203PH0	10 A		Dust Tight Water Resistant Waterproof	IP66 IP67 IP69K		70 °C	-25 °C	Spring Terminal	500 V		22.3 mm	Circular		Front Panel Mount	On-Off	500 V			DPST-NC	Pull
Siemens 3SU11507BD881NA0	10 A	Silver Alloy	Dust Tight Water Resistant Waterproof	IP65 IP67	Digital (Mechanical Switch)	70 °C	-25 °C	Screw Terminal	500 V	Joystick	22.3 mm	Circular	2 - Axis Joystick	Panel Mount	360° Directional	500 V	500000 Cycles	10000000
Siemens 3SU11501HB201FH0	10 A		Dust Tight Water Resistant Waterproof	IP66 IP67 IP69K		70 °C	-25 °C	Screw Terminal	500 V		22.3 mm	Circular		Front Panel Mount	Off-On On-Off	500 V			DPST-NO/NC	Twist
