1-2112058-0
ActiveTE Connectivity AMP Connectors
8POS,YES 1.5,SOCK HSG,ASSY,SEALED
1-2112058-0
ActiveTE Connectivity AMP Connectors
8POS,YES 1.5,SOCK HSG,ASSY,SEALED
Description
General part information
1-2112058-0

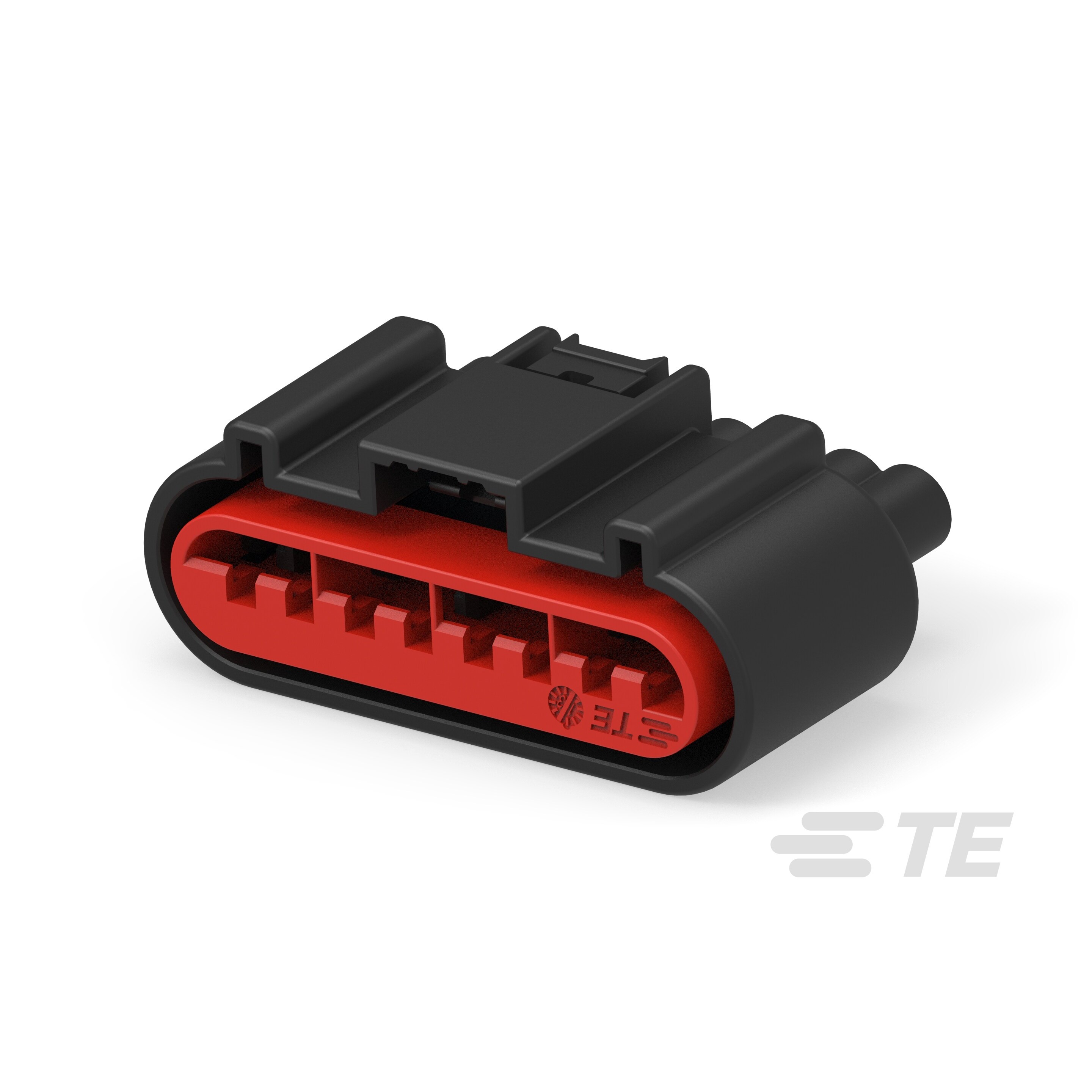

8 Position Housing, Housing for Female Terminals, Wire-to-Board, 5 mm [.197 in] Centerline, Sealable, Black, Wire & Cable, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2112058-0 |
|---|---|
| Color | Black |
| Connector Type | Housing for Female Insert |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
