CNF12-S5SP0-PP7
ActiveAltech Corporation
FIELD-WIRED CONN. M12 FEM STR 5-
CNF12-S5SP0-PP7
ActiveAltech Corporation
FIELD-WIRED CONN. M12 FEM STR 5-
Description
General part information
CNF12-S5SP0-PP7

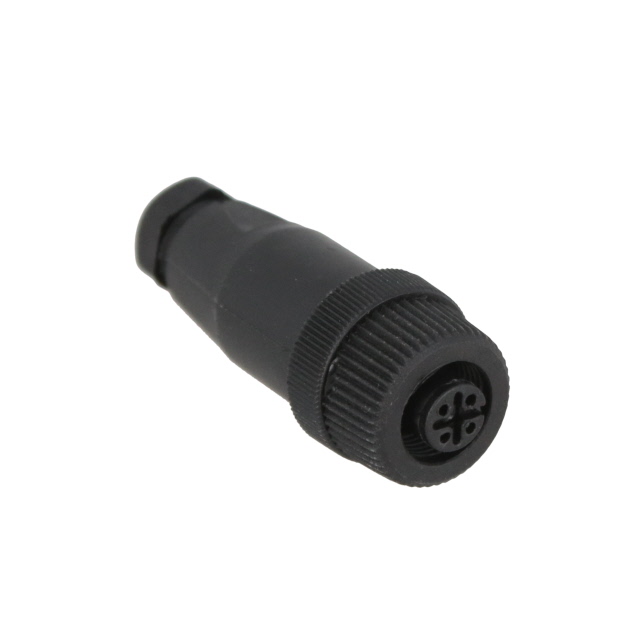

5 Position Circular Connector Plug, Female Sockets Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | CNF12-S5SP0-PP7 |
|---|---|
| Backshell Material, Plating | Nylon 6/6, Polyamide (PA66) |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | A |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 60 V |
