095-725-127-003
ActiveMcGill Microwave Systems
CBL ASSY SMPM PLUG TO PLUG 3"
095-725-127-003
ActiveMcGill Microwave Systems
CBL ASSY SMPM PLUG TO PLUG 3"
Description
General part information
095-725-127-003

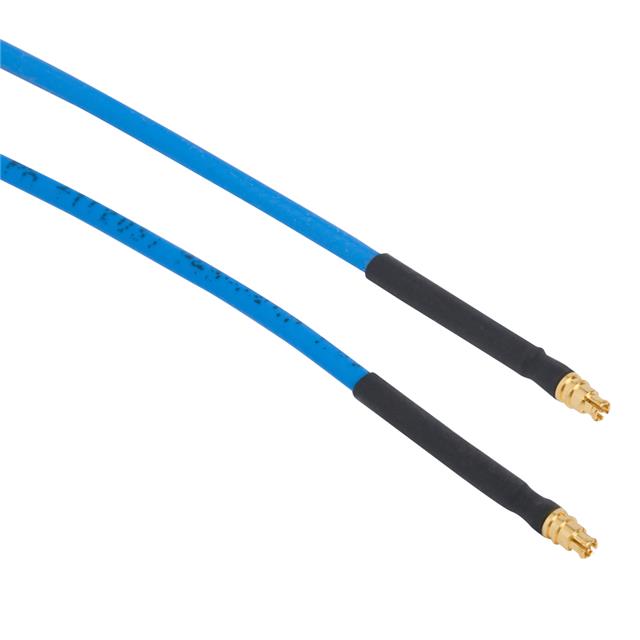

Cable Assembly Coaxial SMPM to SMPM TFlex-405 3.000" (76.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-725-127-003 |
|---|---|
| 1st Connector | SMPM Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMPM Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | TFlex |
| Cable Type Size | 405 |
| Color | Blue |
| Frequency - Max | 18 GHz |
| Length | 3 " |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMPM |
