Description
General part information

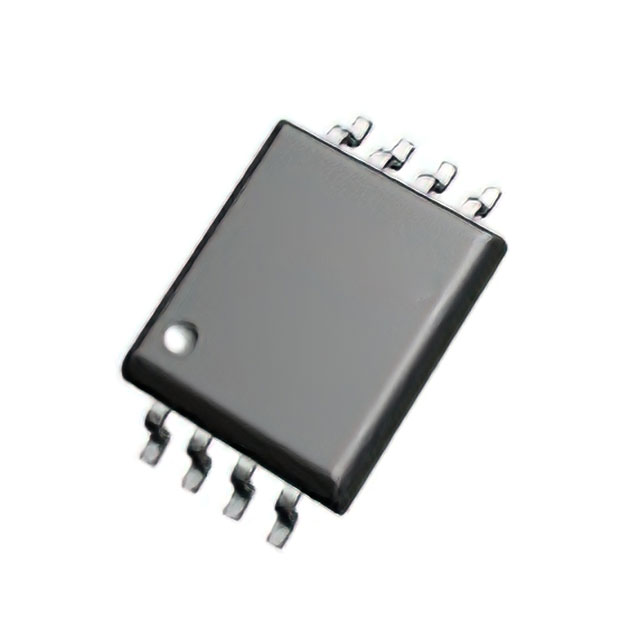

ISSI20R11HXUMA1
This solid-state isolator provides powerful energy transmission over a galvanic isolation barrier. No dedicated voltage supply required on the output stage. Input to output buffered drive enables fast turn-on/off for safe switches SOA operation. This device features over-current or over-temperature protection, to easily and safely build protected solid-state relays.
Technical Specifications
Parameters and characteristics for this part
| Specification | ISSI20R11HXUMA1 |
|---|---|
| Channel Type | Unidirectional |
| Fall Time (Typ) | 1.9 µs |
| Inputs - Side 1 | 1 |
| Inputs - Side 2 | 1 |
| Isolated Power | No |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Length | 0.295 in |
| Package Name | 8-SOIC, PG-DSO-8-66 |
| Package Width | 7.5 mm |
| Propagation Delay tpHL (Max) | 6 µs |
| Propagation Delay tpLH (Max) | 20 µs |
| Rise Time (Typ) | 8 µs |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 5.7 kV |
| Voltage - Supply (Maximum) | 3.5 V |
| Voltage - Supply (Minimum) | 2.85 V |
