093101-1-04N
ActiveGrayhill Inc.

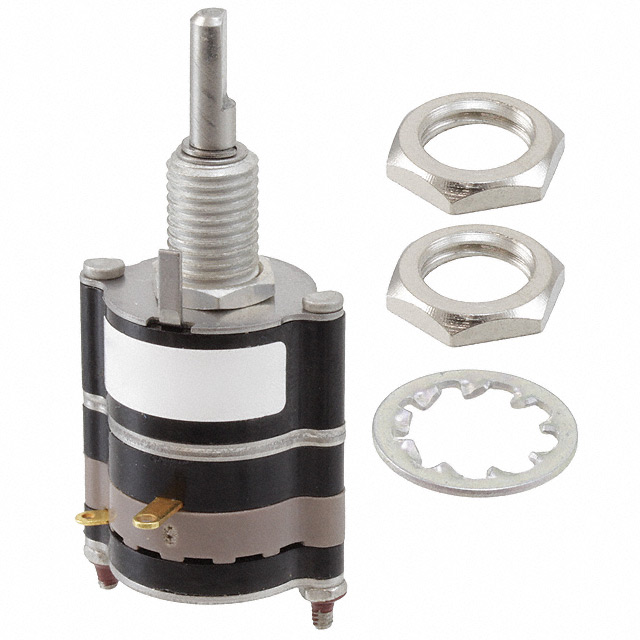

SWITCH ROTARY 4POS 250MA 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
093101-1-04N
ActiveGrayhill Inc.
SWITCH ROTARY 4POS 250MA 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 093101-1-04N | 093101 Series |
|---|---|---|
| Actuator Length [x] | 9.53 mm | 9.53 mm |
| Actuator Type | Flatted | Flatted |
| Actuator Type [diameter] | 3.17 mm | 3.17 mm |
| Angle of Throw | 30 ° | 30 ° |
| Circuit per Deck | SP4T | SP4T, SP3T, 6PDT, DPDT, SP5T, 5PDT |
| Circuit per Deck | - | 4PDT |
| Contact Finish | Gold | Gold |
| Contact Material | Silver Alloy | Silver Alloy |
| Contact Timing | Non-Shorting | Non-Shorting, Shorting |
| Current Rating (Amps) | 250 mA | 250 mA |
| Depth Behind Panel [z] | 24.38 mm | 24.38 mm |
| Index Stops | Fixed | Fixed |
| Number of Decks [custom] | 1 | 1 |
| Number of Poles per Deck | 1 | 1 - 6 |
| Number of Positions | 4 | 2 - 4 |
| Termination Style | Solder Lug | Solder Lug |
| Voltage Rating - AC | 115 V | 115 V |
| Voltage Rating - DC | 28 V | 28 V |
093101 Series
SWITCH ROTARY 4POS 250MA 115V
| Part | Number of Poles per Deck | Angle of Throw | Voltage Rating - DC | Circuit per Deck | Index Stops | Contact Finish | Current Rating (Amps) | Depth Behind Panel [z] | Number of Positions | Termination Style | Actuator Type [diameter] | Actuator Type | Actuator Length [x] | Contact Material | Contact Timing | Voltage Rating - AC | Number of Decks [custom] | Circuit per Deck [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 093101-1-04N | 1 | 30 ° | 28 V | SP4T | Fixed | Gold | 250 mA | 24.38 mm | 4 | Solder Lug | 3.17 mm | Flatted | 9.53 mm | Silver Alloy | Non-Shorting | 115 V | 1 | |
Grayhill Inc. 093101-1-03N | 1 | 30 ° | 28 V | SP3T | Fixed | Gold | 250 mA | 24.38 mm | Solder Lug | 3.17 mm | Flatted | 9.53 mm | Silver Alloy | Non-Shorting | 115 V | 1 | ||
Grayhill Inc. 093101-6-02S | 6 | 30 ° | 28 V | 6PDT | Fixed | Gold | 250 mA | 24.38 mm | 2 | Solder Lug | 3.17 mm | Flatted | 9.53 mm | Silver Alloy | Shorting | 115 V | 1 | |
Grayhill Inc. 093101-4-02N | 30 ° | 28 V | Fixed | Gold | 250 mA | 24.38 mm | 2 | Solder Lug | 3.17 mm | Flatted | 9.53 mm | Silver Alloy | Non-Shorting | 115 V | 1 | 4PDT | ||
Grayhill Inc. 093101-2-02N | 2 | 30 ° | 28 V | DPDT | Fixed | Gold | 250 mA | 24.38 mm | 2 | Solder Lug | 3.17 mm | Flatted | 9.53 mm | Silver Alloy | Non-Shorting | 115 V | 1 | |
Grayhill Inc. 093101-1-05N | 1 | 30 ° | 28 V | SP5T | Fixed | Gold | 250 mA | 24.38 mm | Solder Lug | 3.17 mm | Flatted | 9.53 mm | Silver Alloy | Non-Shorting | 115 V | 1 | ||
Grayhill Inc. 093101-5-02N | 5 | 30 ° | 28 V | 5PDT | Fixed | Gold | 250 mA | 24.38 mm | 2 | Solder Lug | 3.17 mm | Flatted | 9.53 mm | Silver Alloy | Non-Shorting | 115 V | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 63.19 | |
Description
General part information
093101 Series
Rotary Switch 4 Position SP4T 250mA (AC/DC) 115 VAC Panel Mount
