ATS-02B-109-C2-R1

Active

Advanced Thermal Solutions Inc.

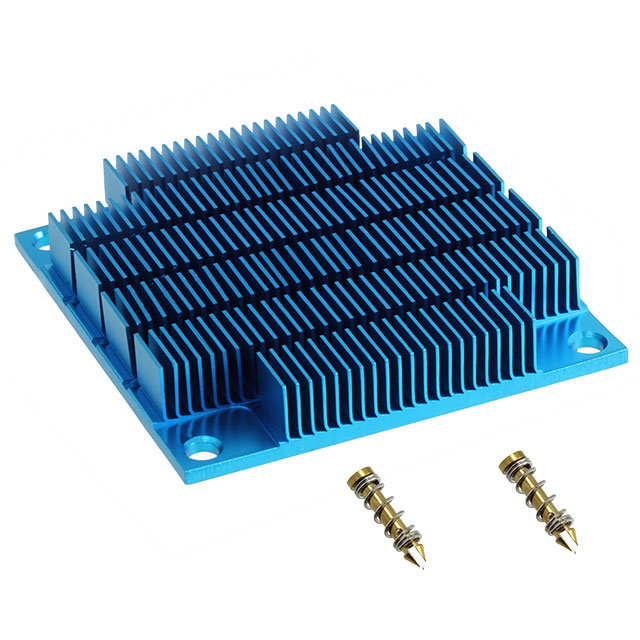

HEATSINK 54.00MM X 54.00MM ALUM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-02B-109-C2-R1

Active

Advanced Thermal Solutions Inc.

HEATSINK 54.00MM X 54.00MM ALUM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-02B-109-C2-R1	ATS-02B Series

Attachment Method	Push Pin	Push Pin
Fin Height	0.374 in	0.23 - 1.378 "
Fin Height	9.5 mm	5.84 - 35 mm
Fin Height	-	10 - 30 mm
Fin Height	-	0.394 - 1.181 in
Length	-	25 - 70 mm
Length	-	0.984 - 2.756 "
Length [x]	54 mm	30 - 60 mm
Length [x]	2.126 "	1.181 - 2.362 in
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Square, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	27.7 °C/W	2.17 - 100 °C/W
Type	Top Mount	Top Mount
Width	-	1.45 - 2.756 in
Width	-	50 - 70 mm
Width	-	25 - 57.6 mm
Width	-	1.181 - 2.267 in
Width [x]	2.126 "	0.984 - 2.362 "
Width [x]	54 mm	40 - 60 mm

ATS-02B Series

HEATSINK 70X70X15MM XCUT

...

Part	Width [y]	Width [y]	Material	Package Cooled	Material Finish	Length	Length	Attachment Method	Fin Height	Fin Height	Type	Thermal Resistance @ Forced Air Flow	Shape	Width	Width	Length [x]	Length [x]	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]
Advanced Thermal Solutions Inc. ATS-02B-28-C1-R0	2.756 in	70 mm	Aluminum	ASIC, BGA, CPU, LGA	Blue Anodized	70 mm	2.756 "	Push Pin	0.59 "	15 mm	Top Mount	10.57 °C/W	Fins, Square
Advanced Thermal Solutions Inc. ATS-02B-174-C2-R0			Aluminum	ASIC, BGA, CPU, LGA	Blue Anodized			Push Pin	1.378 in	35 mm	Top Mount		Fins, Square	30 mm	1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-02B-37-C1-R0			Aluminum	ASIC, BGA, CPU, LGA	Blue Anodized	36.83 mm	1.45 in	Push Pin			Top Mount	9.1 °C/W	Rectangular, Fins	57.6 mm	2.267 in			17.78 mm	0.7 in
Advanced Thermal Solutions Inc. ATS-02B-202-C3-R0			Aluminum	ASIC, BGA, CPU, LGA	Blue Anodized			Push Pin			Top Mount	14.94 °C/W, 100 LFM	Fins, Square			54 mm	2.126 "			2.126 "	54 mm
Advanced Thermal Solutions Inc. ATS-02B-97-C1-R0			Aluminum	ASIC, BGA, CPU, LGA	Blue Anodized	45 mm		Push Pin			Top Mount	20.28 °C/W	Fins, Square	45 mm			1.772 "	10 mm	0.394 in	1.772 in
Advanced Thermal Solutions Inc. ATS-02B-107-C1-R1	1.969 in	50 mm	Aluminum	ASIC, BGA, CPU, LGA	Blue Anodized			Push Pin	0.374 in	9.5 mm	Top Mount	27.91 °C/W	Fins, Square			50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-02B-93-C3-R0			Aluminum	ASIC, BGA, CPU, LGA	Blue Anodized			Push Pin			Top Mount	12.42 °C/W	Fins, Square					20 mm	0.79 in	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-02B-03-C2-R0			Aluminum	ASIC, BGA, CPU, LGA	Blue Anodized			Push Pin	0.59 "	15 mm	Top Mount	15.85 °C/W	Fins, Square							1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-02B-32-C2-R0	1.45 "		Aluminum	ASIC, BGA, CPU, LGA	Blue Anodized	57.9 mm	2.28 "	Push Pin	0.45 in	11.43 mm	Top Mount	21.46 °C/W	Rectangular, Fins	36.83 mm
Advanced Thermal Solutions Inc. ATS-02B-18-C2-R0			Aluminum	ASIC, BGA, CPU, LGA	Blue Anodized			Push Pin	0.59 "	15 mm	Top Mount	13.38 °C/W, 100 LFM	Fins, Square			54 mm	2.126 "			2.126 "	54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.52
		10	$ 5.37
		25	$ 5.25

Description

General part information

ATS-02B Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
