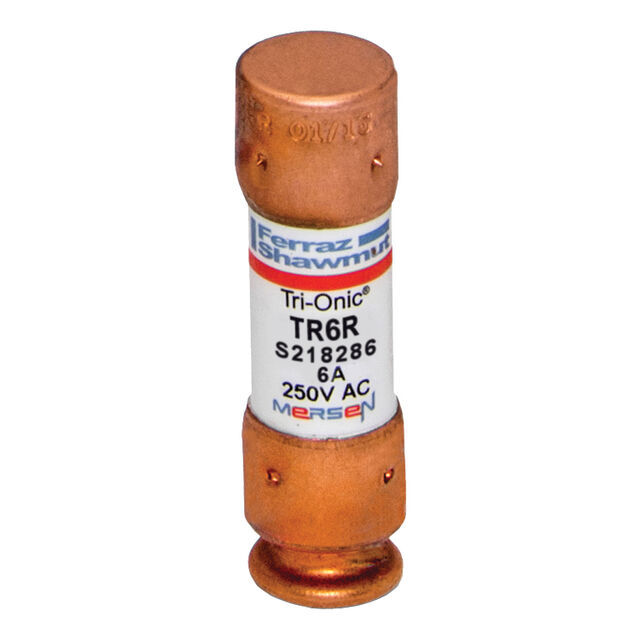

TR6R
ActiveMersen USA Newburyport-MA L.L.C.
250V 6A 2X9/16 RK5 TD FUS
TR6R
ActiveMersen USA Newburyport-MA L.L.C.
250V 6A 2X9/16 RK5 TD FUS
Description
General part information
TR6R
6A 250 VAC 160 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | TR6R |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UL, CSA |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 20 kA |
| Class | RK5 |
| Current Rating | 6 A |
| Features | Indicating |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.551 in |
| Size / Dimension Length | 2.008 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 160 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
