ERN.00.650.CLL
ActiveLEMO
CIRCULAR PUSH PULL CONNECTORS FIXED RCPT COAXIAL 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
ERN.00.650.CLL
ActiveLEMO
CIRCULAR PUSH PULL CONNECTORS FIXED RCPT COAXIAL 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ERN.00.650.CLL | ERN.00.650 Series |
|---|---|---|
| Body Finish | Chrome | Chrome |
| Body Material | Brass | Brass |
| Center Contact Material | Bronze | Brass, Bronze |
| Center Contact Plating | Gold | Gold |
| Connector Style | NIM-CAMAC CD/N 549, Triaxial | NIM-CAMAC CD/N 549, Triaxial |
| Connector Type | Receptacle, Female Socket | Male Pin, Receptacle, Female Socket |
| Contact Termination | Solder Cup | Solder Cup |
| Dielectric Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 Ohms |

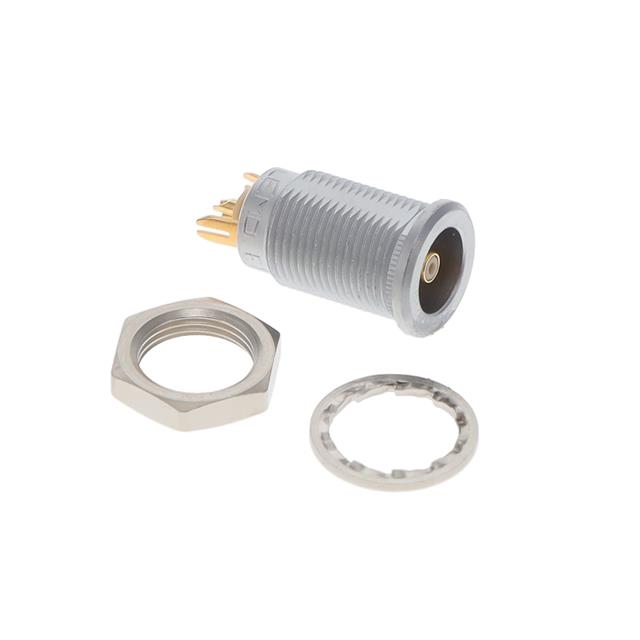

| Includes | 1 Nut, 1 Connector, 1 Lockwasher | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | - | IP50 |
| Mating Cycles | 5000 | 5000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 260 ░C | 260 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shield Termination | Solder | Solder |
| Voltage Rating | 700 VDC | 700 VDC |
ERN.00.650 Series
CONN PNL RCPT TRIAX PIN SLDER
| Part | Center Contact Plating | Connector Style | Ingress Protection | Mating Cycles | Fastening Type | Connector Type | Mounting Feature | Impedance | Voltage Rating | Body Material | Contact Termination | Shield Termination | Body Finish | Dielectric Material | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Center Contact Material | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ERN.00.650.CLA | Gold | NIM-CAMAC CD/N 549, Triaxial | IP50 | 5000 | Push-Pull | Male Pin, Receptacle | Bulkhead - Rear Side Nut | 50 Ohms | 700 VDC | Brass | Solder Cup | Solder | Chrome | Polyetheretherketone (PEEK) | 1 Connector, 1 Lockwasher, 1 Nut | -55 °C | 260 ░C | Silver | Brass | |
LEMO ERN.00.650.CLL | Gold | NIM-CAMAC CD/N 549, Triaxial | 5000 | Push-Pull | Female Socket, Receptacle | Bulkhead - Rear Side Nut | 50 Ohms | 700 VDC | Brass | Solder Cup | Solder | Chrome | Polyetheretherketone (PEEK) | 1 Connector, 1 Lockwasher, 1 Nut | -55 °C | 260 ░C | Silver | Bronze | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ERN.00.650 Series
NIM-CAMAC CD/N 549, Triaxial Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
