2D25UL
ActiveAltech Corporation

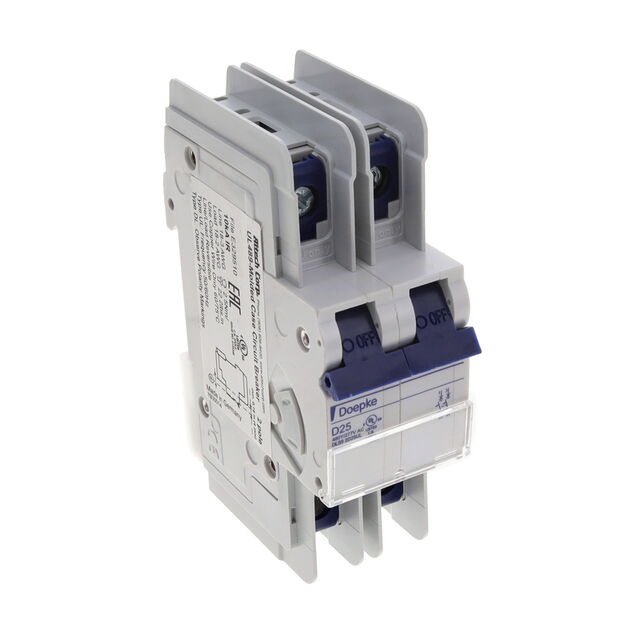

2D25UL 25A CIRCUIT BREAKER D CHA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2D25UL
ActiveAltech Corporation
2D25UL 25A CIRCUIT BREAKER D CHA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2D25UL | 2D25 Series |
|---|---|---|
| Actuator Type | Lever | Lever |
| Approval Agency | UL489, CE, cULus | UL489, CE, cULus, UL1077, cURus, CSA, UL508, VDE |
| Breaker Type | Thermal Magnetic | Thermal Magnetic |
| Current Rating (Amps) | 25 A | 25 A |
| Illumination | None | None |
| Mounting Type | DIN Rail | DIN Rail |
| Number of Poles | 2 | 2 |
| Voltage Rating - AC | 480 V | 480 V |
| Voltage Rating - DC | - | 80 - 250 V |
2D25 Series
2D25DL 25A CIRCUIT BREAKER D CHA
| Part | Current Rating (Amps) | Mounting Type | Illumination | Actuator Type | Approval Agency | Voltage Rating - DC | Number of Poles | Breaker Type | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|
Altech Corporation 2D25DL | 25 A | DIN Rail | None | Lever | CE, cULus, UL489 | 250 V | 2 | Thermal Magnetic | |
Altech Corporation 2D25UR | 25 A | DIN Rail | None | Lever | CE, cURus, UL1077 | 2 | Thermal Magnetic | 480 V | |
Altech Corporation 2D25UM | 25 A | DIN Rail | None | Lever | CSA, UL508, VDE | 80 V | 2 | Thermal Magnetic | 480 V |
Altech Corporation 2D25UL | 25 A | DIN Rail | None | Lever | CE, cULus, UL489 | 2 | Thermal Magnetic | 480 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 79.14 | |
| 5 | $ 65.89 | |||
| 10 | $ 60.86 | |||
| 50 | $ 50.54 | |||
| 100 | $ 46.62 | |||
Description
General part information
2D25 Series
Circuit Breaker Thermal Magnetic 25A 480 V AC DC Lever DIN Rail
