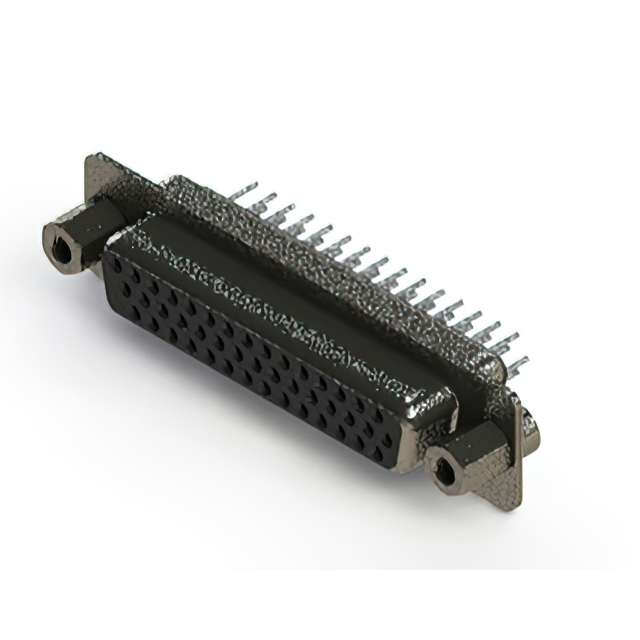

638-044-330-243

Active

EDAC Inc.

CONN D-SUB HD RCPT 44P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

638-044-330-243

Active

EDAC Inc.

CONN D-SUB HD RCPT 44P VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	638-044-330-243

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder

638-044 Series

...

Part	Flange Feature	Connector Type	Termination	Contact Finish	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Material	Number of Positions	Connector Style	Contact Finish Thickness	Mounting Type	Color	Dielectric Material	Shell Material, Finish	Material Flammability Rating	Features	Number of Rows	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 638-044-230-061	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Solder	Gold	3 A	-55 °C	125 °C	Signal	Copper Alloy	44	D-Sub High Density	Flash	Through Hole	Black	Polyester Thermoplastic	Nickel Plated Steel	UL94 V-0	Shielded	3	3	B DB
EDAC Inc. 638-044-330-243	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Solder	Gold	3 A	-55 °C	85 °C	Signal	Copper Alloy	44	D-Sub High Density		Through Hole	Black	Polyester Thermoplastic		UL94 V-0	Shielded	3	3	B DB	15 µin	0.38 µm
EDAC Inc. 638-044-632-241	Housing/Shell (Unthreaded)	Receptacle Female Sockets		Gold	3 A	-55 °C	85 °C	Signal	Copper Alloy	44	D-Sub High Density		Free Hanging (In-Line)	Black	Polyester Thermoplastic		UL94 V-0	Shielded	3	3	B DB	30 Áin	0.76 Ám
EDAC Inc. 638-044-630-241	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Solder	Gold	3 A	-55 °C	85 °C	Signal	Copper Alloy	44	D-Sub High Density		Through Hole	Black	Polyester Thermoplastic		UL94 V-0	Shielded	3	3	B DB	30 Áin	0.76 Ám
EDAC Inc. 638-044-231-053	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Solder	Gold	3 A	-55 °C	85 °C	Signal	Copper Alloy	44	D-Sub High Density	Flash	Through Hole	Black	Polyester Thermoplastic	Nickel Plated Steel	UL94 V-0	Shielded	3	3	B DB
EDAC Inc. 638-044-230-248	4-40	Receptacle Female Sockets	Solder	Gold	3 A	-55 °C	85 °C	Signal	Copper Alloy	44	D-Sub High Density	Flash	Through Hole	Black	Polyester Thermoplastic		UL94 V-0	Shielded	3	3	B DB
EDAC Inc. 638-044-232-266	Housing/Shell (4-40)	Receptacle Female Sockets		Gold	3 A	-55 °C	125 °C	Signal	Copper Alloy	44	D-Sub High Density	Flash	Free Hanging (In-Line)	Black	Polyester Thermoplastic		UL94 V-0	Board Lock Shielded	3	3	B DB
EDAC Inc. 638-044-330-047	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Solder	Gold	3 A	-55 °C	85 °C	Signal	Copper Alloy	44	D-Sub High Density		Through Hole	Black	Polyester Thermoplastic	Nickel Plated Steel	UL94 V-0	Board Lock Shielded	3	3	B DB	15 µin	0.38 µm
EDAC Inc. 638-044-332-241	Housing/Shell (Unthreaded)	Receptacle Female Sockets		Gold	3 A	-55 °C	85 °C	Signal	Copper Alloy	44	D-Sub High Density		Free Hanging (In-Line)	Black	Polyester Thermoplastic		UL94 V-0	Shielded	3	3	B DB	15 µin	0.38 µm
EDAC Inc. 638-044-232-243	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets		Gold	3 A	-55 °C	85 °C	Signal	Copper Alloy	44	D-Sub High Density	Flash	Free Hanging (In-Line)	Black	Polyester Thermoplastic		UL94 V-0	Shielded	3	3	B DB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 10.20

Description

General part information

638-044 Series

44 Position D-Sub, High Density Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
