10131318-04512GRLF

Active

Amphenol ICC (FCI)

CONN HEADER R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMinitek Power Overview Datasheet +2

10131318-04512GRLF

Active

Amphenol ICC (FCI)

CONN HEADER R/A

Deep-Dive with AI

DocumentsMinitek Power Overview Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10131318-04512GRLF

Connector Type	Header
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Glow Wire Compliant
Insulation Color	Natural
Insulation Height [z]	0.404 in
Insulation Height [z]	10.26 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 V

10131318 Series

Part	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Style	Voltage Rating	Contact Finish Thickness - Mating	Insulation Color	Contact Shape	Contact Material	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Contact Type	Number of Rows	Contact Finish - Mating	Insulation Material	Pitch - Mating	Pitch - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Connector Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features
Amphenol ICC (FCI) 10131318-0611100LF	Through Hole Right Angle	4.2 mm	0.165 in	Board to Cable/Wire	600 V	Flash	Natural	Square	Copper Alloy	0.404 in	10.26 mm	All	Male Pin	2	Gold	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Locking Ramp	-40 °C	105 ░C	Shrouded - 4 Wall	6	Varies by Wire Gauge	UL94 V-0	3.5 mm	0.138 in	Header	Solder
Amphenol ICC (FCI) 10131318-0421100LF	Through Hole Right Angle	4.2 mm	0.165 in	Board to Cable/Wire	600 V		Natural	Square	Copper Alloy	0.404 in	10.26 mm	All	Male Pin	2		Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Locking Ramp	-40 °C	105 ░C	Shrouded - 4 Wall	4	Varies by Wire Gauge	UL94 V-0	3.5 mm	0.138 in	Header	Solder	2.03 µm	80 µin
Amphenol ICC (FCI) 10131318-06111G0LF	Through Hole Right Angle	4.2 mm	0.165 in	Board to Cable/Wire	600 V	Flash	Natural	Square	Copper Alloy	0.404 in	10.26 mm	All	Male Pin	2	Gold	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Locking Ramp	-40 °C	105 ░C	Shrouded - 4 Wall	6	Varies by Wire Gauge	UL94 V-0	3.5 mm	0.138 in	Header	Solder			Glow Wire Compliant
Amphenol ICC (FCI) 10131318-1222100LF	Through Hole Right Angle	4.2 mm	0.165 in	Board to Cable/Wire	600 V		Black	Square	Copper Alloy	0.404 in	10.26 mm	All	Male Pin	2		Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Locking Ramp	-40 °C	105 ░C	Shrouded - 4 Wall	12	Varies by Wire Gauge	UL94 V-0	3.5 mm	0.138 in	Header	Solder	2.03 µm	80 µin
Amphenol ICC (FCI) 10131318-02221G0LF	Through Hole Right Angle	4.2 mm	0.165 in	Board to Cable/Wire	600 V		Black	Square	Copper Alloy	0.404 in	10.26 mm	All	Male Pin	2		Polyamide (PA66) Nylon 6/6			Locking Ramp	-40 °C	105 ░C	Shrouded - 4 Wall	2	Varies by Wire Gauge	UL94 V-0	3.5 mm	0.138 in	Header	Solder	2.03 µm	80 µin	Glow Wire Compliant
Amphenol ICC (FCI) 10131318-04512GRLF	Through Hole Right Angle	4.2 mm	0.165 in	Board to Cable/Wire	600 V		Natural	Square	Copper Alloy	0.404 in	10.26 mm	All	Male Pin	2		Liquid Crystal Polymer (LCP)	4.2 mm	0.165 in	Locking Ramp	-40 °C	105 ░C	Shrouded - 4 Wall	4	Varies by Wire Gauge	UL94 V-0	3.5 mm	0.138 in	Header	Solder	2.54 çm	100 çin	Glow Wire Compliant
Amphenol ICC (FCI) 10131318-0222100LF	Through Hole Right Angle	4.2 mm	0.165 in	Board to Cable/Wire	600 V		Black	Square	Copper Alloy	0.404 in	10.26 mm	All	Male Pin	2		Polyamide (PA66) Nylon 6/6			Locking Ramp	-40 °C	105 ░C	Shrouded - 4 Wall	2	Varies by Wire Gauge	UL94 V-0	3.5 mm	0.138 in	Header	Solder	2.03 µm	80 µin
Amphenol ICC (FCI) 10131318-02211G0LF	Through Hole Right Angle	4.2 mm	0.165 in	Board to Cable/Wire	600 V		Natural	Square	Copper Alloy	0.404 in	10.26 mm	All	Male Pin	2		Polyamide (PA66) Nylon 6/6			Locking Ramp	-40 °C	105 ░C	Shrouded - 4 Wall	2	Varies by Wire Gauge	UL94 V-0	3.5 mm	0.138 in	Header	Solder	2.03 µm	80 µin	Glow Wire Compliant
Amphenol ICC (FCI) 10131318-2012100LF	Through Hole Right Angle	4.2 mm	0.165 in	Board to Cable/Wire	600 V	Flash	Black	Square	Copper Alloy	0.404 in	10.26 mm	All	Male Pin	2	Gold	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Locking Ramp	-40 °C	105 ░C	Shrouded - 4 Wall	20	Varies by Wire Gauge	UL94 V-0	3.5 mm	0.138 in	Header	Solder
Amphenol ICC (FCI) 10131318-1812100LF	Through Hole Right Angle	4.2 mm	0.165 in	Board to Cable/Wire	600 V	Flash	Black	Square	Copper Alloy	0.404 in	10.26 mm	All	Male Pin	2	Gold	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Locking Ramp	-40 °C	105 ░C	Shrouded - 4 Wall	18	Varies by Wire Gauge	UL94 V-0	3.5 mm	0.138 in	Header	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10131318 Series

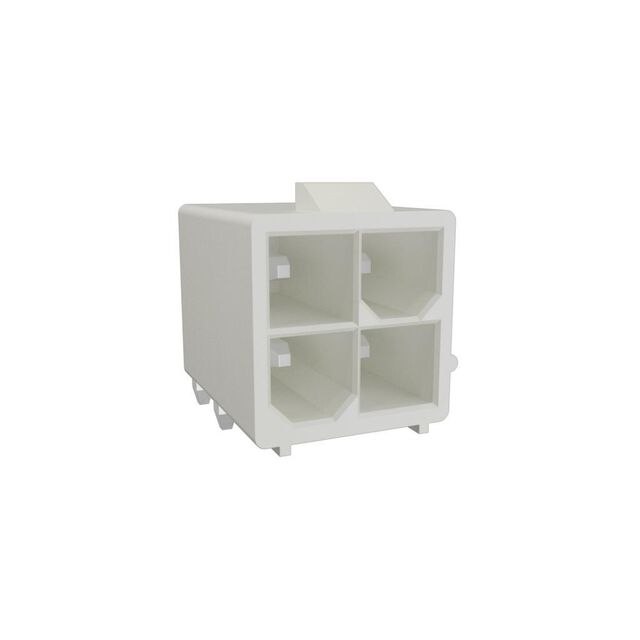

Connector Header Through Hole, Right Angle 4 position 0.165" (4.20mm)

Documents

Technical documentation and resources

10131318-04512GRLF

Deep-Dive with AI

10131318-04512GRLF

Deep-Dive with AI

Technical Specifications

10131318 Series

Pricing

Description

10131318 Series

Documents

Minitek Power Overview

Datasheet

10131319-1841200LF

Minitek Product Specification 2

10131318 Series
