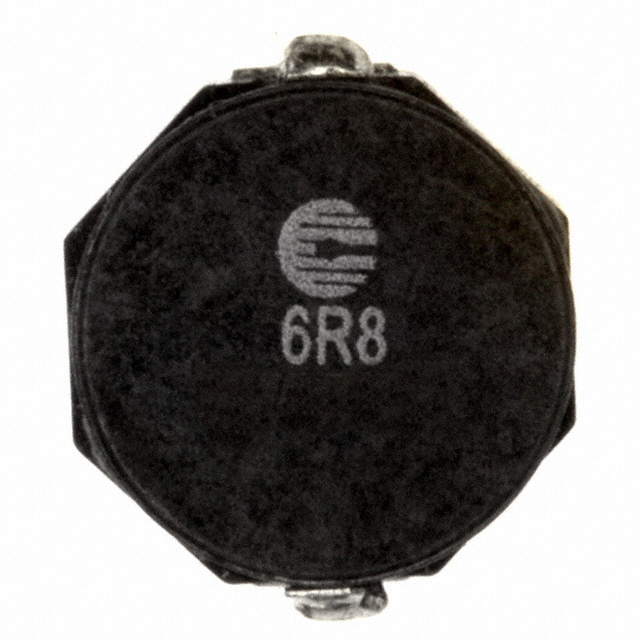

SD8350-6R8-R
ActiveEaton - Electronics Division
FIXED IND 6.8UH 3.9A 25 MOHM SMD
SD8350-6R8-R
ActiveEaton - Electronics Division
FIXED IND 6.8UH 3.9A 25 MOHM SMD
Description
General part information
SD8350-6R8-R
6.8 µH Shielded Drum Core, Wirewound Inductor 3.9 A 25mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SD8350-6R8-R |
|---|---|
| Current - Saturation (Isat) | 4.4 A |
| Current Rating | 3.9 A |
| DC Resistance (DCR) (Max) | 25 mOhm |
| Height - Seated (Max) | 0.177 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.374 in |
| Size / Dimension Width | 0.327 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
