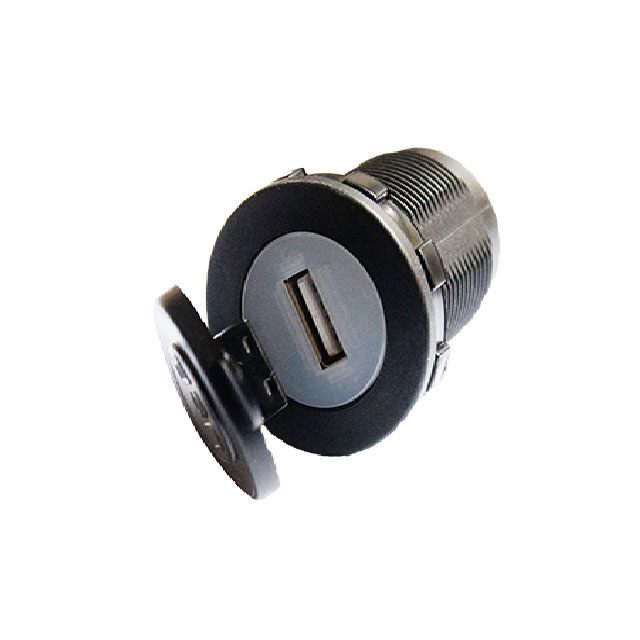

A1-USB1-1-B

Active

Switch Components

BATT CHG USB AUTO ADAPT 5V 2.1A

Search across all available documentation for this part.

Active

Switch Components

BATT CHG USB AUTO ADAPT 5V 2.1A

Technical Specifications

Parameters and characteristics for this part

BATT CHG USB AUTO ADAPT 5V 2.1A

Part	Mounting Type	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Charge Current - Max [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Approval Agency	Battery Chemistry	Termination Style	Number of Cells	Voltage - Nominal
Switch Components A1-USB1-1-B	Auto Socket	36.8 mm	1.98 in	50.3 mm	1.45 in	2.1 A	12 V	24 V	45 °C	-20 C	USB Auto Adapter	UL	Mobile Devices	USB A Receptacle	1	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB Auto Adapter Battery Charger 5V 2.1A
