DC0001/08-TG-A482K-0.1-0

Active

t-Global Technology

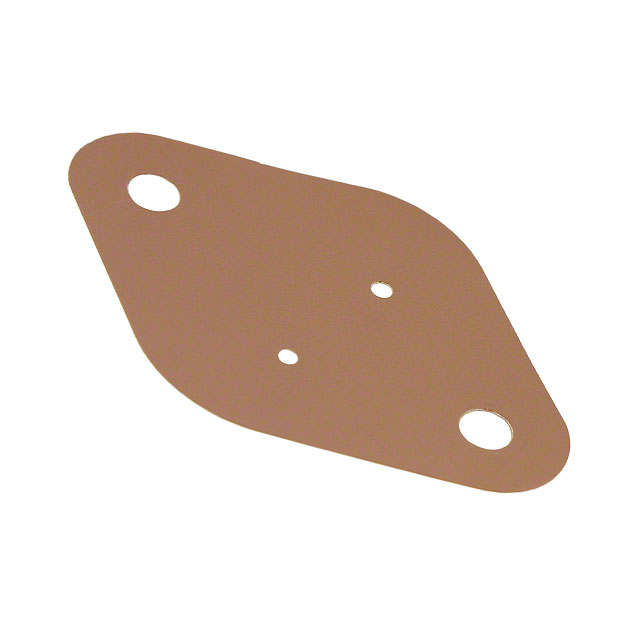

THERM PAD 41.91X28.96MM RED

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 41.91X28.96MM RED

Technical Specifications

Parameters and characteristics commom to parts in this series

THERM PAD 41.91X28.96MM RED

Part	Color	Shelf Life Start	Shelf Life	Thickness	Thickness	Thermal Conductivity	Usage	Type	Material	Outline [y]	Outline [x]	Shape	Adhesive	Thickness [custom]	Thickness [custom]	Thickness [x]	Thickness [x]	Backing, Carrier
t-Global Technology DC0001/08-TG-A482K-0.1-0	Red	Date of Purchase	24 Months	0.1 mm	0.0039 in	2.3 W/m-K	TO-3	Die-Cut Pad, Sheet	Silicone	28.96 mm	41.91 mm	Rhombus
t-Global Technology DC0001/08-TG-A373F-0.25-2A	Yellow		12 Months			1.4 W/m-K	TO-3	Die-Cut Pad, Sheet		28.96 mm	41.91 mm	Rhombus	Adhesive - Both Sides	0.254 mm	0.01 in
t-Global Technology DC0001/08-TI900-0.12-2A	White		24 Months			1.8 W/m-K	TO-3	Die-Cut Pad, Sheet	Silicone	28.96 mm	41.91 mm	Rhombus	Adhesive - Both Sides			0.005 in	0.127 mm	Viscose
t-Global Technology DC0001/08-TG-A486G-0.3-2A	Gray	Date of Purchase	12 Months			6 W/m-K	TO-3	Die-Cut Pad, Sheet		28.96 mm	41.91 mm	Rhombus	Adhesive - Both Sides	0.305 mm	0.012 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 1.15
