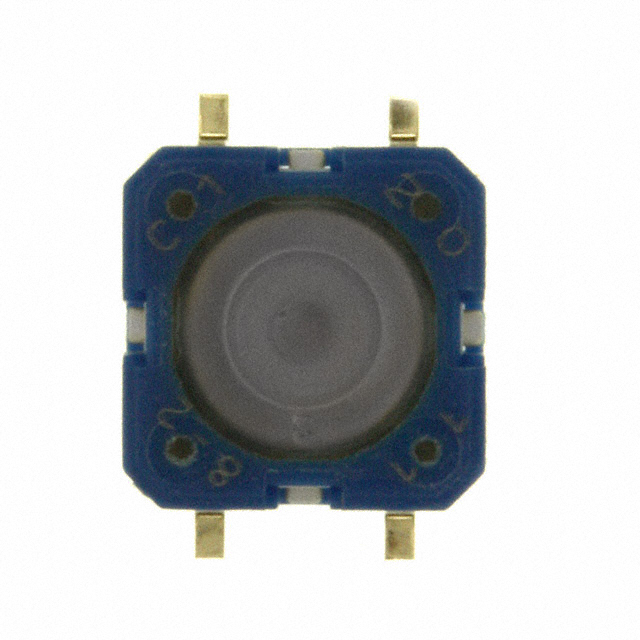

1.14.100.503/0000
ActiveRAFI USA
SWITCH TACTILE SPST-NO 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
1.14.100.503/0000
ActiveRAFI USA
SWITCH TACTILE SPST-NO 0.1A 42V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.14.100.503/0000 |
|---|---|
| Actuator Height off PCB, Vertical | 5 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 42 VAC/DC, 0.1 A |
| Illumination | Non-Illuminated |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 330 gf |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 8.4 mm |
| Outline [y] | 8.4 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.34 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.45 | |
| 10 | $ 1.99 | |||
| 25 | $ 1.83 | |||
| 100 | $ 1.61 | |||
| 250 | $ 1.47 | |||
| 500 | $ 1.38 | |||
| Digi-Reel® | 1 | $ 2.45 | ||
| 10 | $ 1.99 | |||
| 25 | $ 1.83 | |||
| 100 | $ 1.61 | |||
| 250 | $ 1.47 | |||
| 500 | $ 1.38 | |||
| Tape & Reel (TR) | 1000 | $ 1.29 | ||
| 2000 | $ 1.21 | |||
| 3000 | $ 1.16 | |||
| 5000 | $ 1.10 | |||
| 7000 | $ 1.06 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.70 | |
| 10 | $ 2.37 | |||
| 25 | $ 2.30 | |||
| 50 | $ 2.24 | |||
| 100 | $ 2.16 | |||
| 250 | $ 2.03 | |||
Description
General part information
1.14.100 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
