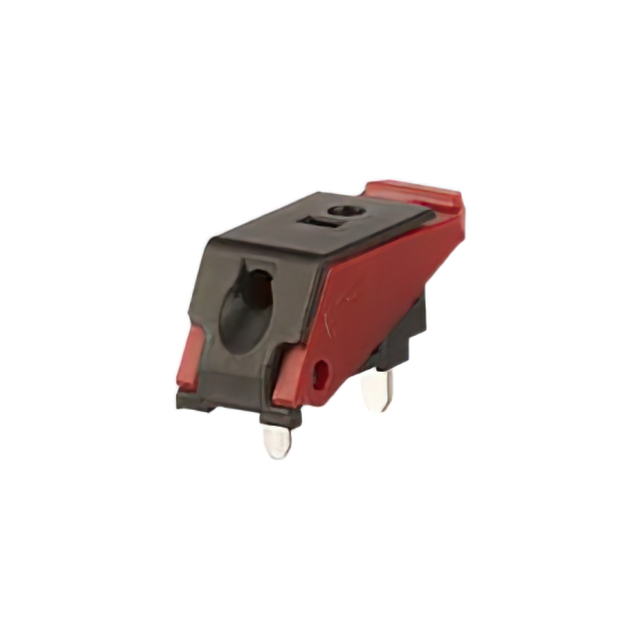

SR99S01VBNN0004
ActiveMETZ CONNECT USA Inc.
TERM BLOCK 1POS SIDE ENTRY PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SR99S01VBNN0004
ActiveMETZ CONNECT USA Inc.
TERM BLOCK 1POS SIDE ENTRY PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SR99S01VBNN0004 |
|---|---|
| Clamp Material - Plating | Steel |
| Color | Red |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 9 A |
| Features | Push Button Actuated |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Positions Per Level | 1 |
| Voltage | 300 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SR99S01VBNN0004
1 Position Wire to Board Terminal Block Horizontal with Board Through Hole
