1217142-1
ActiveTE Connectivity AMP Connectors

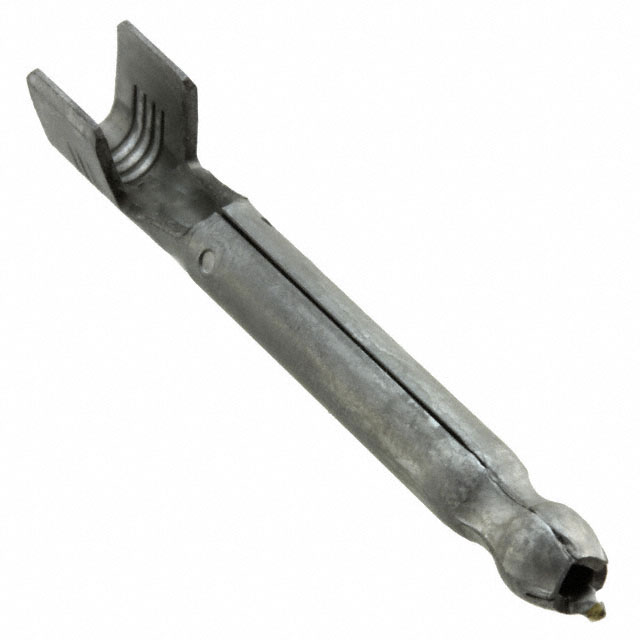

CONN TERM PIN 8-12AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217142-1
ActiveTE Connectivity AMP Connectors
CONN TERM PIN 8-12AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217142-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Barrel [x] | 1.08 " |
| Length - Barrel [x] | 27.43 mm |
| Length - Overall | 39.5 mm, 1.555 in |
| Terminal Type | Pin (Plug), Male |
| Termination | Crimp |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 8 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.62 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.50 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.39 | |||
| 2500 | $ 0.37 | |||
| Tape & Reel (TR) | 88000 | $ 0.32 | ||
1217142 Series
CONN TERM PIN 8-12AWG CRIMP
| Part | Contact Material | Terminal Type | Insulation | Length - Overall | Length - Barrel [x] | Length - Barrel [x] | Contact Finish | Termination | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217142-1 | Brass | Male, Pin (Plug) | Non-Insulated | 1.555 in, 39.5 mm | 1.08 " | 27.43 mm | Tin | Crimp | 8 AWG | 12 AWG |
Description
General part information
1217142 Series
Terminal Connector Male, Pin (Plug) 8-12 AWG Crimp Tin
