BU-191930021
ActiveMueller Electric Co
TERMINAL, RING TONGUE, 1/4", 18AWG ROHS COMPLIANT: YES
BU-191930021
ActiveMueller Electric Co
TERMINAL, RING TONGUE, 1/4", 18AWG ROHS COMPLIANT: YES
Description
General part information
BU-191930021

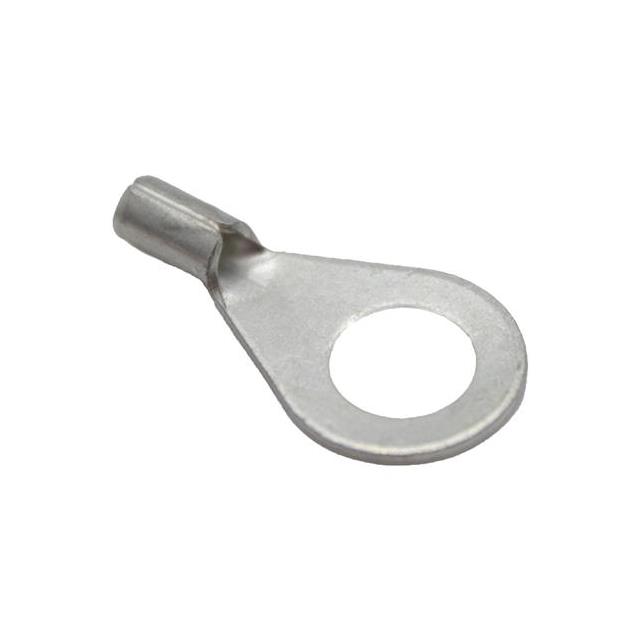

Ring Terminal Connector 1/4 Stud Circular 18-22 AWG Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-191930021 |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Copper Alloy |
| Insulation | Non-Insulated |
| Length - Overall | 0.89 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.25 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.028 in |
| Width - Outer Edges | 0.47 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
