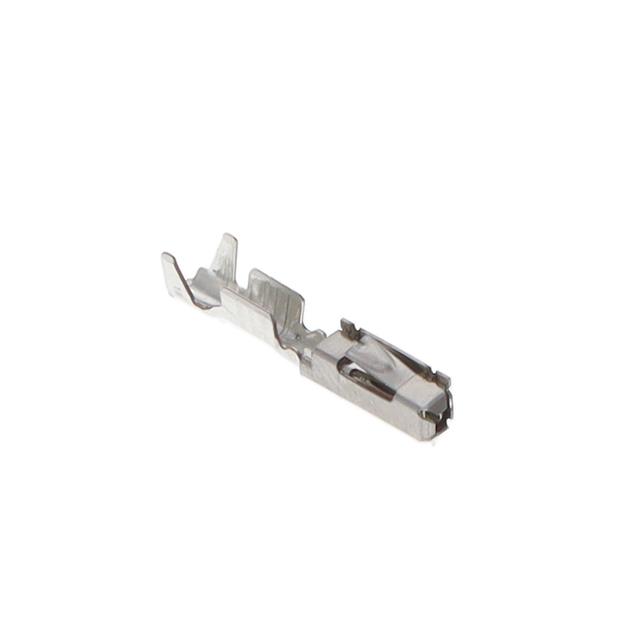

5-963715-1
ActiveTE Connectivity AMP Connectors
MQS REC CONT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-963715-1
ActiveTE Connectivity AMP Connectors
MQS REC CONT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-963715-1 | 963715 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Silver |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | - | Stamped |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.04 | |||
| Tape & Reel (TR) | 10000 | $ 0.04 | ||
| 20000 | $ 0.04 | |||
| 30000 | $ 0.04 | |||
| 50000 | $ 0.03 | |||
| 70000 | $ 0.03 | |||
| 100000 | $ 0.03 | |||
| 250000 | $ 0.03 | |||
963715 Series
MQS REC CONT
| Part | Contact Finish | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Type |
|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-963715-1 | Tin | Crimp | 17.5 AWG | 20 AWG | Socket | |
TE Connectivity AMP Connectors 963715-6 | Silver | Crimp | 17.5 AWG | 20 AWG | Socket | Stamped |
TE Connectivity AMP Connectors 5-963715-6 | Silver | Crimp | 17.5 AWG | 20 AWG | Socket | Stamped |
Description
General part information
963715 Series
Socket Contact Tin 18-20 AWG Crimp
