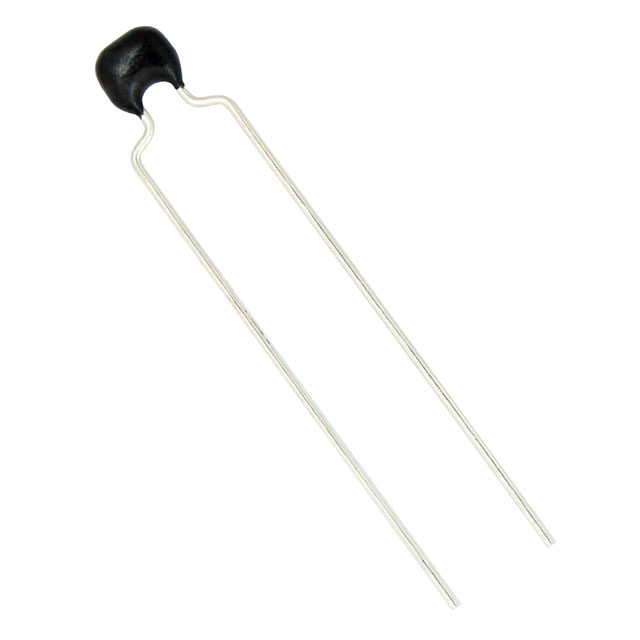

K472J20C0GF63H5H
ActiveVishay Dale
CAP CER 4700PF 50V C0G RADIAL
K472J20C0GF63H5H
ActiveVishay Dale
CAP CER 4700PF 50V C0G RADIAL
Description
General part information
K472J20C0GF63H5H
4700 pF ±5% 50V Ceramic Capacitor C0G, NP0 Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | K472J20C0GF63H5H |
|---|---|
| Applications | Automotive |
| Capacitance | 4700 pF |
| Height - Seated (Max) | 0.299 in |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
| Voltage - Rated | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
