VOLTAGE MEASURING TRANSDUCERS - MACX MCR-VDC-PT - 2906243
2906243
ActivePhoenix Contact
VOLTAGE MEASURING TRANSDUCERS - MACX MCR-VDC-PT - 2906243
Description
General part information
2906243

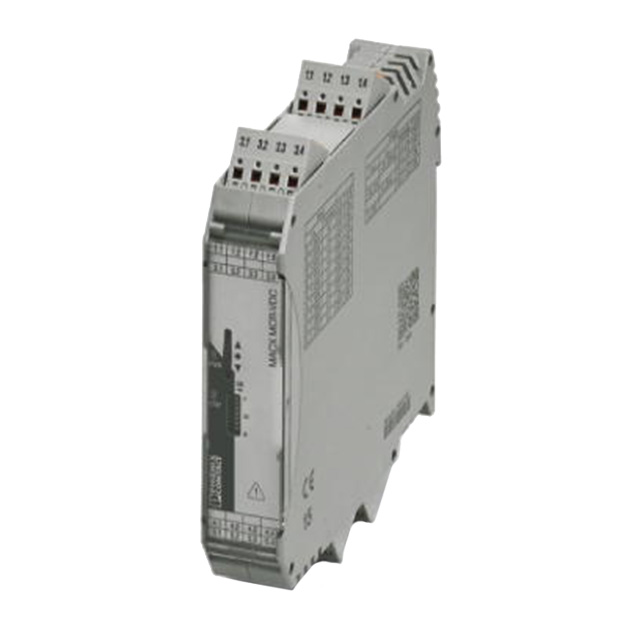

Voltage Transducer ±660VDC Input ±10V Output 24VDC DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | 2906243 |
|---|---|
| Approval Agency | cULus, CE |
| Input Voltage (Max) | 660 VDC |
| Input Voltage (Min) | -660 VDC |
| Isolation | 5300 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Current (Max) | 10 V |
| Output Current (Min) | -10 V |
| Output Voltage (Max) | 10 V |
| Output Voltage (Min) | -10 V |
| Response Time | 16 ms |
| Termination Style | Spring Terminal |
| Type | Voltage Transducer |
| Voltage - Supply | 24 VDC |
