PE3145LF-24
ActivePasternack

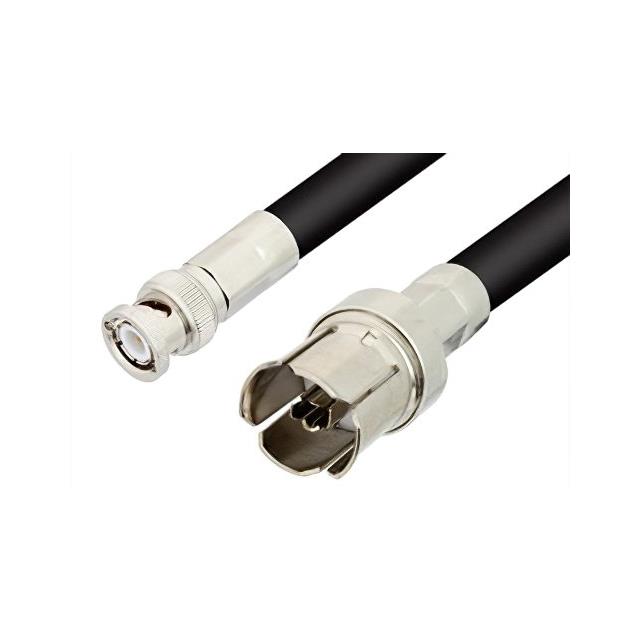

GR874 SEXLESS TO BNC MALE CABLE
PE3145LF-24
ActivePasternack
GR874 SEXLESS TO BNC MALE CABLE
Description
General part information
PE3145LF-24
Cable Assembly Coaxial BNC to GR874 RG-214 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3145LF-24 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | GR874 |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 214 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | BNC to GR874 |
