1-1337624-0

Active

TE Connectivity AMP Connectors

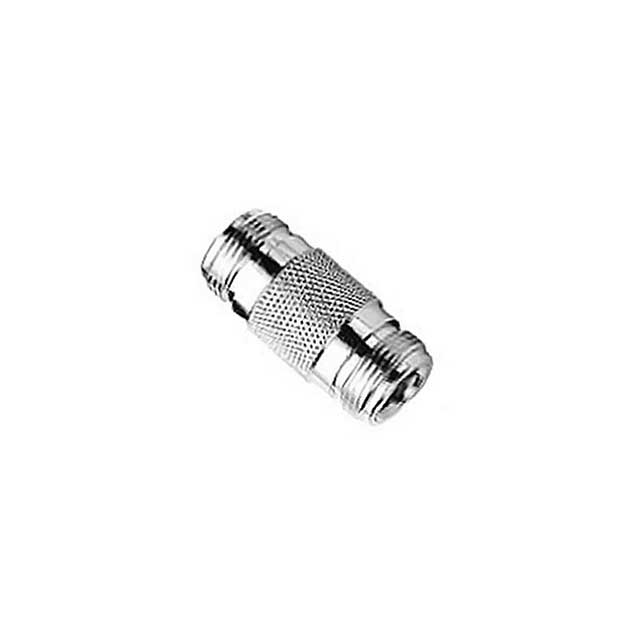

CONN ADAPT JACK-JACK N 50 OHM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT JACK-JACK N 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337624-0

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

CONN ADAPT JACK-JACK N 50 OHM

Part	Dielectric Material	Convert To (Adapter End)	Center Gender	Body Material	Frequency - Max [Max]	Adapter Type	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Style	Center Contact Material	Body Finish	Convert From (Adapter End)	Mating Cycles	Conversion Type	Center Contact Plating	Insertion Loss	Adapter Series	Mounting Type
TE Connectivity AMP Connectors 1-1337624-0	Polytetrafluoroethylene (PTFE)	Female Socket, N Jack	Female to Female	Brass	11 GHz	Jack to Jack	50 Ohms	85 °C	-40 °C	Straight	Phosphor Bronze	Nickel	Female Socket, N Jack	500	Same Series	Gold	0.3 dB	N to N	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
