1056333-1

Active

TE Connectivity AMP Connectors

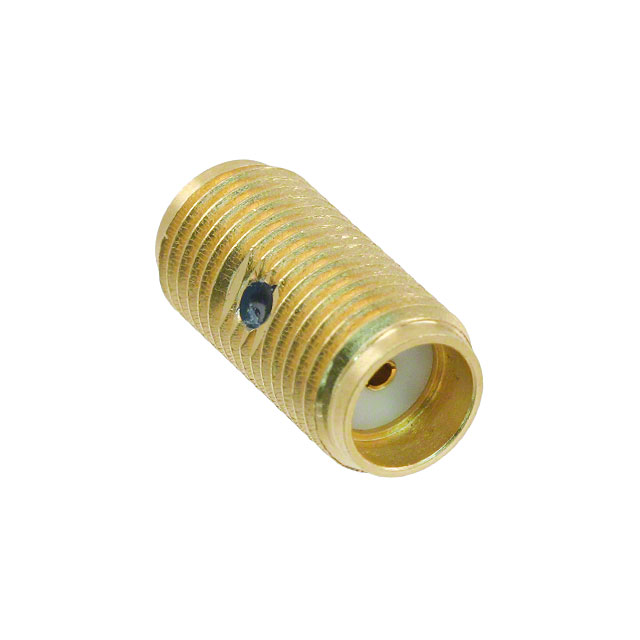

CONN ADAPT JACK-JACK OSM 50 OHM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT JACK-JACK OSM 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1056333-1

Adapter Series	OSM to OSM
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	27 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN ADAPT JACK-JACK OSM 50 OHM

Part	Impedance	Conversion Type	Dielectric Material	Center Gender	Frequency - Max [Max]	Convert To (Adapter End)	Body Material	Convert From (Adapter End)	Body Finish	Mounting Type	Adapter Series	Center Contact Plating	Mating Cycles	Adapter Type	Center Contact Material	Style
TE Connectivity AMP Connectors 1056333-1	50 Ohms	Same Series	Polytetrafluoroethylene (PTFE)	Female to Female	27 GHz	Female Socket, SMA Jack	Stainless Steel	Female Socket, SMA Jack	Gold	Free Hanging (In-Line)	OSM to OSM	Gold	500	Jack to Jack	Beryllium Copper	Straight

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
