Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 31-991 | 31 Series |
|---|---|---|

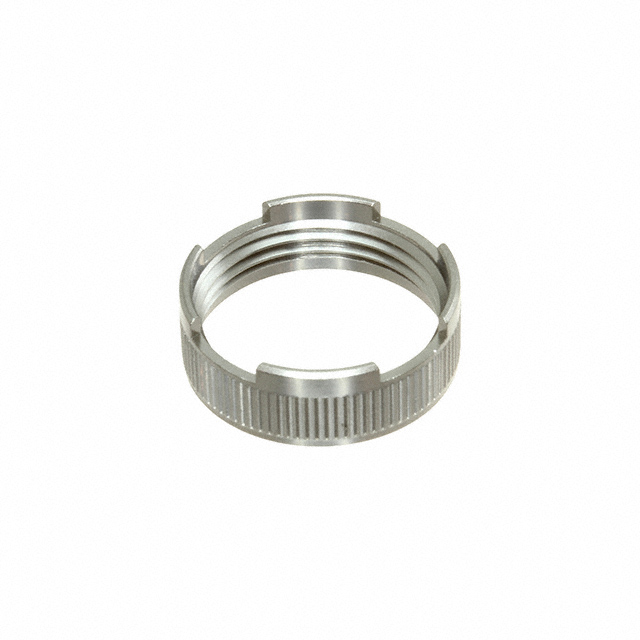

| Accessory Type | Knurled Nut | Knurled Nut |
| Actuator Marking | - | No Marking |
| Actuator Type | - | Rectangular, Button (Not Included) |
| Circuit | - | DPST-NO/NC |
| Color | - | Gray |
| Current Rating (Amps) | - | 5 - 100 mA |
| For Use With/Related Products | 31 Series | 31 Series |
| Illumination | - | Illuminated, Non-Illuminated |
| Ingress Protection | - | IP40 |
| Lens Size | - | 18 mm |
| Mechanical Life | - | 2000000 - 5000000 Cycles |
| Mounting Type | - | Snap Fit, Panel Mount, Front |
| Operating Temperature | - | 55 °C |
| Operating Temperature | - | -25 °C |
| Panel Cutout Dimensions | - | 16 mm |
| Panel Cutout Dimensions | - | 0.64 in |
| Panel Cutout Dimensions | - | 16.2 mm |
| Panel Cutout Shape | - | Round |
| Shape | - | Rectangular |
| Size | - | 15.3 mm |
| Size | - | 21.5 mm |
| Switch Function | - | Off-Mom, On-Mom |
| Switch Type | - | Pushbutton |
| Termination Style | - | PC Pin, Solder Lug, Quick Connect |
| Type | - | Standard, LED |
| Voltage Rating - AC | - | 42 - 250 V |
| Voltage Rating - DC | - | 42 V |
31 Series
Pushbutton Switches LENS TPT WTLT YLW
| Part | Shape | Mounting Type | For Use With/Related Products | Switch Type | Size [x] | Size [y] | Illumination | Color | Circuit | Current Rating (Amps) | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Switch Function | Mechanical Life | Voltage Rating - DC | Actuator Type | Type | Termination Style | Panel Cutout Dimensions [diameter] | Ingress Protection | Accessory Type | Panel Cutout Shape | Lens Size [diameter] | Panel Cutout Dimensions | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 31-901.3 | Rectangular | Snap Fit | 31 Series | Pushbutton | 15.3 mm | 21.5 mm | Illuminated | ||||||||||||||||||||
EAO 31-902.8 | Rectangular | Snap Fit | 31 Series | Pushbutton | 15.3 mm | 21.5 mm | Non-Illuminated | Gray | |||||||||||||||||||
EAO 31-423.036 | Panel Mount, Front | DPST-NO/NC | 100 mA | No Marking | 55 °C | -25 °C | 42 V | Off-Mom, On-Mom | 5000000 Cycles | 42 V | Rectangular, Button (Not Included) | Standard | PC Pin, Solder Lug | 16 mm | IP40 | ||||||||||||
EAO 31-991 | 31 Series | Knurled Nut | |||||||||||||||||||||||||
EAO 31-031.006 | LED | Quick Connect | IP40 | Round | 18 mm | 0.64 in | 16.2 mm | ||||||||||||||||||||
EAO 31-706.029 | Panel Mount, Front | DPST-NO/NC | 5 A | No Marking | 55 °C | -25 °C | 250 V | Off-Mom, On-Mom | 2000000 Cycles | Rectangular, Button (Not Included) | Standard | Solder Lug | 16 mm | IP40 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
31 Series
Pushbutton Switches LENS TPT WTLT YLW
Documents
Technical documentation and resources
