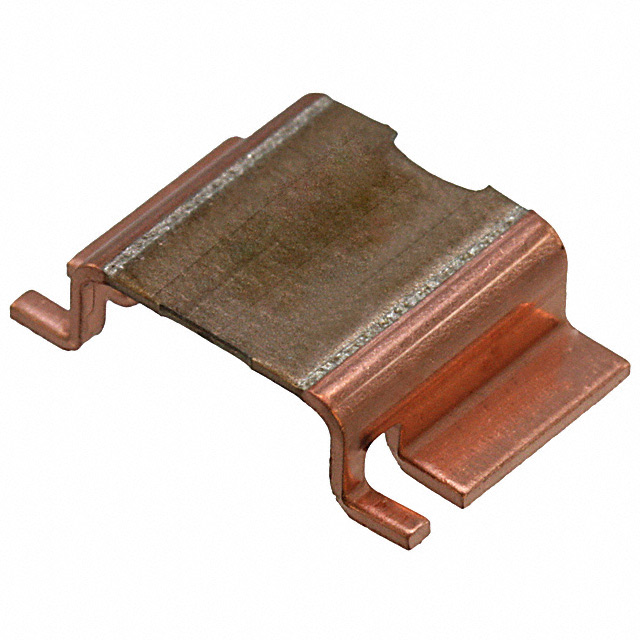

WSLP4026L5000FEB
ActiveVishay Dale
RES 0.0005 OHM 1% 7W NONSTANDARD
WSLP4026L5000FEB
ActiveVishay Dale
RES 0.0005 OHM 1% 7W NONSTANDARD
Description
General part information
WSLP4026L5000FEB
500 µOhms ±1% 7W Chip Resistor Nonstandard Anti-Sulfur, Automotive AEC-Q200, Current Sense, Pulse Withstanding Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | WSLP4026L5000FEB |
|---|---|
| Composition | Metal Element |
| Features | Current Sense, Automotive AEC-Q200, Pulse Withstanding, Anti-Sulfur |
| Height - Seated (Max) | 0.117 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Nonstandard |
| Package Name | 4026 |
| Power (Watts) | 7 W |
| Ratings | AEC-Q200 |
| Resistance | 0.5 mOhms |
| Size / Dimension Length | 0.4 in |
| Size / Dimension Width | 0.26 in |
| Temperature Coefficient | 75 ppm/¯C |
| Tolerance | 1 % |
