TDD4025963
ActiveQuantic Evans
WET TANTALUM
TDD4025963
ActiveQuantic Evans
WET TANTALUM
Description
General part information
TDD4025963

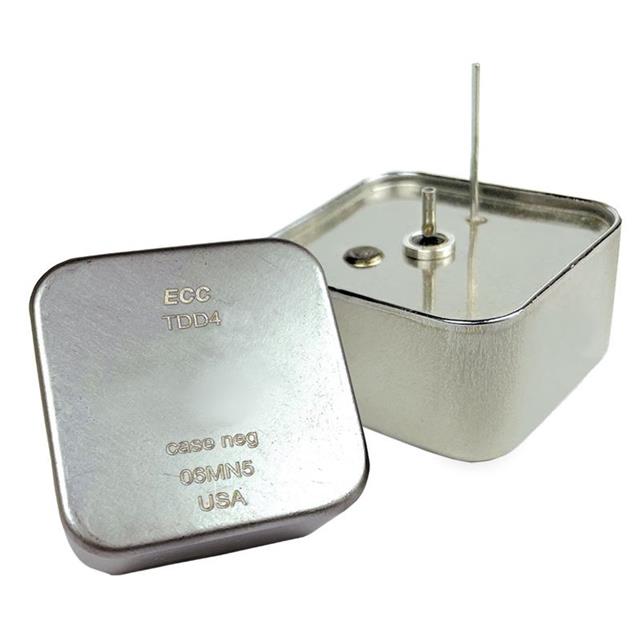

96 mF Hermetically Sealed Tantalum Capacitors 25 V Radial, Can 12mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | TDD4025963 |
|---|---|
| Capacitance | 96 mF |
| ESR (Equivalent Series Resistance) | 12 mOhm |
| Features | Hybrid Wet Tantalum |
| Height - Seated (Max) | 0.77 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 1.4 in |
| Size / Dimension Width | 1.4 in |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 25 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
