SM3844
ObsoleteFairview Microwave
COAX ADAPT 1.85MM TO 2.92MM
SM3844
ObsoleteFairview Microwave
COAX ADAPT 1.85MM TO 2.92MM
Description
General part information
SM3844

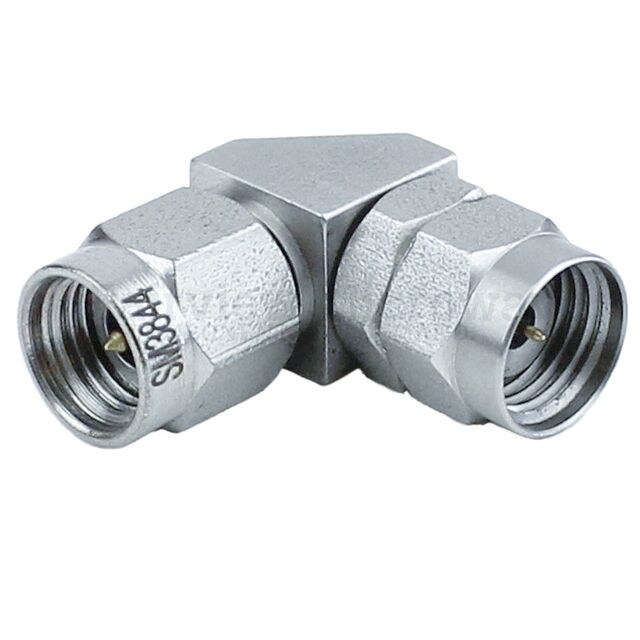

Adapter Coaxial Connector 1.85mm Plug, Male Pin To 2.92mm (OS-2.9) Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3844 |
|---|---|
| Adapter Series Size | 2.92 mm, 1.85 mm |
| Adapter Type | Plug to Plug |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) Plug Size | 1.85 mm |
| Convert From (Adapter End) Type | Male Pin |
| Convert To (Adapter End) | Plug, (OS-2.9) Plug, Male Pin |
| Convert To (Adapter End) Model | OS-2.9 |
| Convert To (Adapter End) Precision | 2.92 mm |
| Convert To (Adapter End) Size | 2.92 mm |
| Convert To (Adapter End) Type | Male Pin, Plug |
| Fastening Type | Threaded |
| Frequency - Max | 40 Gbps |
| Impedance | 50 Ohm |
| Insertion Loss | 0.35 dB |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Right Angle |
