TGH-0200-03

Active

t-Global Technology

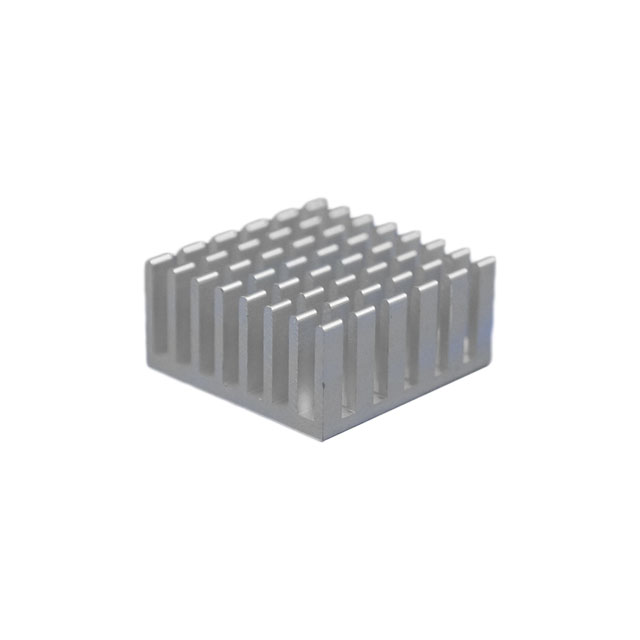

ALUMINIUM HEAT SINK 20X20MM

Search across all available documentation for this part.

Active

t-Global Technology

ALUMINIUM HEAT SINK 20X20MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TGH-0200-03	TGH-0200 Series

Fin Height	0.374 in	0.374 in
Fin Height	9.5 mm	9.5 mm
Length [x]	0.787 "	0.787 - 1.299 "
Length [x]	20 mm	20 - 33 mm
Material	Aluminum	Aluminum
Material Finish	-	Black Anodized
Shape	Square, Pin Fins	Square, Pin Fins, Rectangular, Fins, Fins
Type	Top Mount	Top Mount
Width [y]	20 mm	20 mm
Width [y]	0.787 in	0.787 in

ALUMINIUM HEAT SINK 20X20MM

Part	Shape	Width [y]	Width [y]	Length [x]	Length [x]	Material	Type	Fin Height	Fin Height	Material Finish
t-Global Technology TGH-0200-03	Pin Fins, Square	20 mm	0.787 in	0.787 "	20 mm	Aluminum	Top Mount	0.374 in	9.5 mm
t-Global Technology TGH-0200-05	Rectangular, Fins	20 mm	0.787 in	1.299 in	33 mm	Aluminum	Top Mount	0.374 in	9.5 mm	Black Anodized
t-Global Technology TGH-0200-02	Fins, Square	20 mm	0.787 in	0.787 "	20 mm	Aluminum	Top Mount			Black Anodized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Aluminum Top Mount
