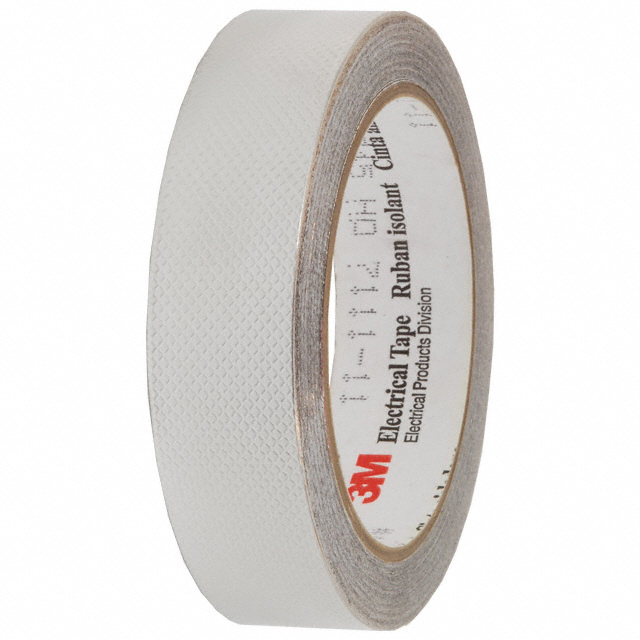

1345-5/8"X18YD
Active3M
RF EMI SHIELDING TAPE 54'X0.63"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1345-5/8"X18YD
Active3M
RF EMI SHIELDING TAPE 54'X0.63"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1345-5/8"X18YD | 1345 Series |
|---|---|---|
| Adhesive | Conductive, Single Sided | Acrylic, Conductive, Single Sided, Acrylic, Non-Conductive, Single Sided |
| Backing, Carrier | - | Copper Foil, Tin Plated |
| Color | - | Silver |
| Length | 16.5 m | 16.5 - 91.44 m |
| Length | 54 ft | 54 - 180 ft |
| Length | - | 18 - 60 yds |
| Length | - | 36 " |
| Material | Embossed Tin-Plated Copper Foil | Embossed Tin-Plated Copper Foil |
| Operating Temperature [Max] | 130 °C | 130 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Shelf Life | 60 Months | 60 Months |
| Shelf Life Start | Date of Manufacture | Date of Manufacture |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C | 27 - 80 °F |
| Storage/Refrigeration Temperature [Min] | 10 °C | 10 °C |
| Tape Type | - | Copper Foil |
| Thickness | - | 0.0041 in |
| Thickness | - | 4.1 mils |
| Thickness | - | 0.104 mm |
| Thickness - Backing, Carrier | - | 0.0014 in |
| Thickness - Backing, Carrier | - | 1.4 mils |
| Thickness - Backing, Carrier | - | 0.036 mm |
| Thickness - Overall [custom] | 0.004 " | 0.004 " |
| Thickness - Overall [custom] | 0.1 mm | 0.1 mm |
| Type | Shielding Tape | Shielding Tape, Shielding Sheet |
| Usage | - | EMI Shielding |
| Width | - | 76.2 - 584.2 mm |
| Width | - | 1 - 23 in |
| Width | - | - |
| Width | - | 0.25 - 3.5 in |
| Width | - | 6.35 - 88.9 mm |
| Width | - | 1 3/4 |
| Width [y] | 16 mm | 9 - 16 mm |
| Width [y] | 0.63 " | 0.35 - 0.63 in |
1345 Series
TAPE COPPER FOIL SILVER 23"X60YD
| Part | Usage | Tape Type | Thickness | Thickness | Thickness | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Backing, Carrier | Width [x] | Width [x] | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Color | Adhesive | Length | Length | Length | Shelf Life | Shelf Life Start | Operating Temperature [Min] | Operating Temperature [Max] | Material | Type | Width [y] | Width [y] | Thickness - Overall [custom] | Thickness - Overall [custom] | Width | Width | Width | Width | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EMI Shielding | Copper Foil | 0.0041 in | 4.1 mils | 0.104 mm | 0.0014 in | 1.4 mils | 0.036 mm | Copper Foil, Tin Plated | 584.2 mm | 23 in | 27 °C, 80 °F | 10 °C | Silver | Acrylic | 60 yds | 55 m | 180 ft | 60 Months | Date of Manufacture | ||||||||||||||
27 °C, 80 °F | 10 °C | Conductive, Single Sided | 16.5 m | 54 ft | 60 Months | Date of Manufacture | -40 °C | 130 °C | Embossed Tin-Plated Copper Foil | Shielding Tape | 0.38 in | 9.65 mm | 0.004 " | 0.1 mm | |||||||||||||||||||
EMI Shielding | Copper Foil | 0.0041 in | 4.1 mils | 0.104 mm | 0.0014 in | 1.4 mils | 0.036 mm | Copper Foil, Tin Plated | 27 °C, 80 °F | 10 °C | Silver | Acrylic | 60 yds | 55 m | 180 ft | 60 Months | Date of Manufacture | 3.5 in | 88.9 mm | ||||||||||||||
EMI Shielding | Copper Foil | 0.0041 in | 4.1 mils | 0.104 mm | 0.0014 in | 1.4 mils | 0.036 mm | Copper Foil, Tin Plated | 27 °C, 80 °F | 10 °C | Silver | Acrylic | 18 yd | 16.5 m | 54 ft | 60 Months | Date of Manufacture | 0.35 in | 9 mm | ||||||||||||||
EMI Shielding | Copper Foil | 0.0041 in | 4.1 mils | 0.104 mm | 0.0014 in | 1.4 mils | 0.036 mm | Copper Foil, Tin Plated | 27 °C, 80 °F | 10 °C | Silver | Acrylic | 18 yd | 16.5 m | 54 ft | 60 Months | Date of Manufacture | 0.98 " | 25 mm | ||||||||||||||
27 °C, 80 °F | 10 °C | Conductive, Single Sided | 16.5 m | 54 ft | 60 Months | Date of Manufacture | -40 °C | 130 °C | Embossed Tin-Plated Copper Foil | Shielding Tape | 0.63 " | 16 mm | 0.004 " | 0.1 mm | |||||||||||||||||||
EMI Shielding | Copper Foil | 0.0041 in | 4.1 mils | 0.104 mm | 0.0014 in | 1.4 mils | 0.036 mm | Copper Foil, Tin Plated | 76.2 mm | 3 in | 27 °C, 80 °F | 10 °C | Silver | Acrylic | 18 yd | 16.5 m | 54 ft | 60 Months | Date of Manufacture | ||||||||||||||
EMI Shielding | Copper Foil | 0.0041 in | 4.1 mils | 0.104 mm | 0.0014 in | 1.4 mils | 0.036 mm | Copper Foil, Tin Plated | 584.2 mm | 23 in | 27 °C, 80 °F | 10 °C | Silver | Acrylic | 18 yd | 16.5 m | 54 ft | 60 Months | Date of Manufacture | ||||||||||||||
EMI Shielding | Copper Foil | 0.0041 in | 4.1 mils | 0.104 mm | 0.0014 in | 1.4 mils | 0.036 mm | Copper Foil, Tin Plated | 27 °C, 80 °F | 10 °C | Silver | Acrylic | 18 yd | 16.5 m | 54 ft | 60 Months | Date of Manufacture | 1.75 in | 44.45 mm | 1 3/4 | |||||||||||||
27 °C, 80 °F | 10 °C | Conductive, Single Sided | 16.5 m | 54 ft | 60 Months | Date of Manufacture | -40 °C | 130 °C | Embossed Tin-Plated Copper Foil | Shielding Tape | 0.004 " | 0.1 mm | 0.25 in | 6.35 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 15 | $ 62.56 | |
Description
General part information
1345 Series
RF EMI Shielding Tape 1345 Embossed Tin-Plated Copper Foil Conductive, Single Sided 0.630" (16.00mm) X 54.000' (16.50m) X 0.004" (0.10mm)
