Description
General part information

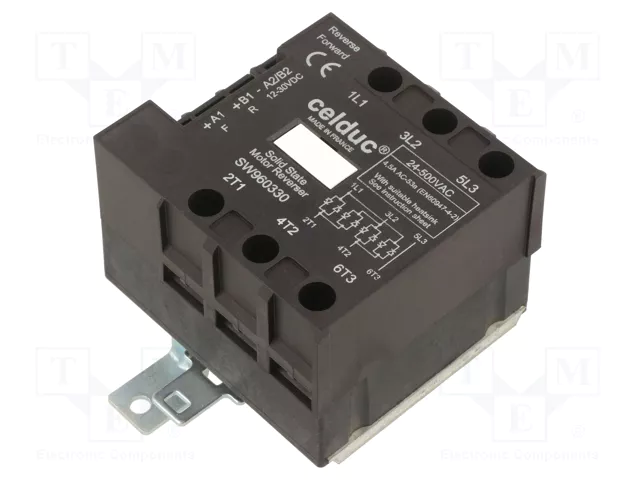

SW960330
RELAY: SOLID STATE; 4.5A; USWITCH: 24÷500VAC; 3-PHASE,REVERSING
Technical Specifications
Parameters and characteristics for this part
| Specification | SW960330 |
|---|---|
| Control / Drive Type | Motor Starter, Reversible |
| Current - Output | 4.5 A |
| Motor Type | AC Motor |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Module |
| Voltage - Load (Max) | 500 V |
| Voltage - Load (Min) | 24 V |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
| Wattage - Load | 1.5 kW |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
