RB0810-222K-RC
ActiveAllied Components International
2200UH +/-10% RADIAL BOBBIN IND.
RB0810-222K-RC
ActiveAllied Components International
2200UH +/-10% RADIAL BOBBIN IND.
Description
General part information
RB0810-222K-RC

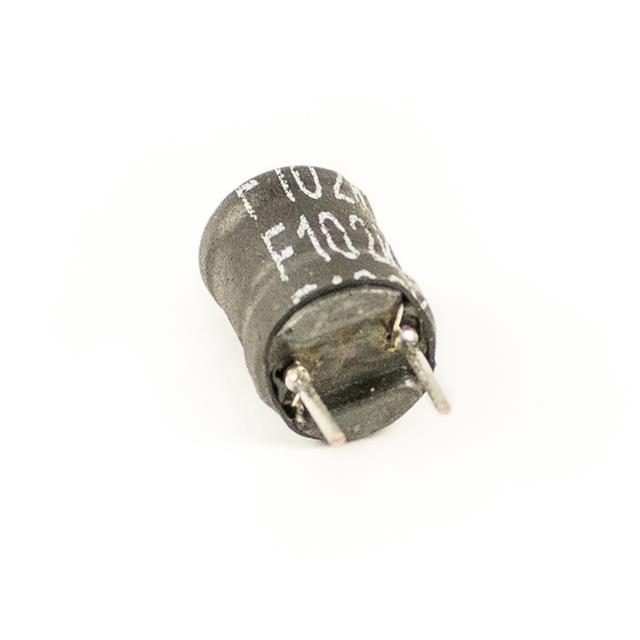

2.2 mH Unshielded Wirewound Inductor 390 mA 4.8Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | RB0810-222K-RC |
|---|---|
| Current - Saturation (Isat) | 0.29 mA |
| Current Rating | 390 mA |
| DC Resistance (DCR) (Max) | 4.8 Ohm |
| Frequency - Self Resonant | 1.3 MHz |
| Height - Seated (Max) | 0.453 in |
| Inductance | 2.2 mH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder, Radial |
| Package Name | Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.374 in |
| Tolerance | 10 % |
| Type | Wirewound |
