132076-1

Active

TE Connectivity AMP Connectors

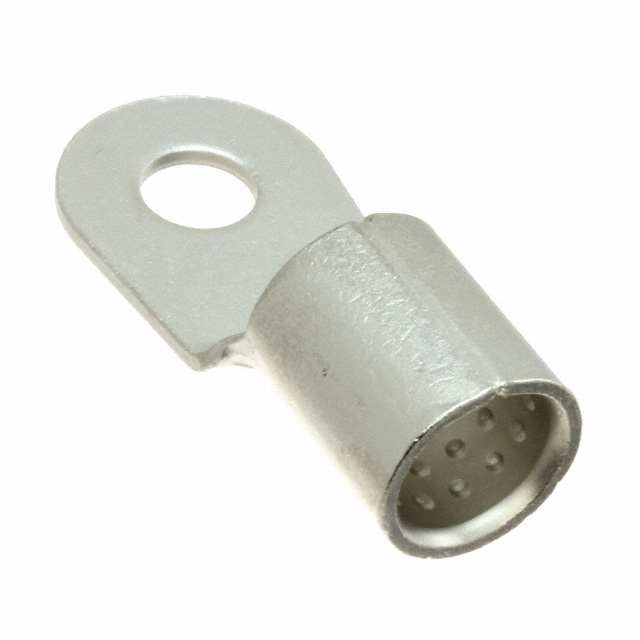

CONN RING CIRC 1/0AWG #8 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING CIRC 1/0AWG #8 CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	132076-1

Contact Finish	Nickel
Contact Material	Copper
Features	Brazed Seam, Serrated Termination
Insulation	Non-Insulated
Length - Overall	50 mm
Length - Overall	1.969 "
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	1.8 mm
Thickness	0.071 in
Width - Outer Edges [y]	20.5 mm
Width - Outer Edges [y]	0.807 "
Wire Gauge	44 AWG

CONN RING CIRC 1/0AWG #8 CRIMP

Part	Contact Finish	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Contact Material	Mounting Type	Features	Stud/Tab Size	Wire Gauge	Length - Overall	Length - Overall	Terminal Type	Insulation
TE Connectivity AMP Connectors 132076-1	Nickel	1.8 mm	0.071 in	20.5 mm	0.807 "	Crimp	Copper	Free Hanging (In-Line)	Brazed Seam, Serrated Termination	8 Stud	44 AWG	50 mm	1.969 "	Circular	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 8 Stud Circular 1/0 AWG Crimp
