M7NOK-3706J

Active

D-SUB CABLE MML37K/MC37G/MFL37K

Search across all available documentation for this part.

Active

D-SUB CABLE MML37K/MC37G/MFL37K

Technical Specifications

Parameters and characteristics commom to parts in this series

D-SUB CABLE MML50K/MC50M/MFL50K

Part	Contact Finish	Number of Positions	Type	Contact Finish Thickness	Contact Finish Thickness	Color	1st Connector	Length	Length	Shielding	2nd Connector
3M M7NOK-5006R	Gold	50	DB50	0.76 Ám	30 Áin	Multiple, Ribbon	Female Sockets, Receptacle	6 ft	1.83 m	Unshielded	Plug, Male Pins
3M M7NOK-3706J	Gold	37	DB37	0.76 Ám	30 Áin		Female Sockets, Receptacle	6 ft	1.83 m	Unshielded	Plug, Male Pins
3M M7NOK-3710R	Gold	37	DB37	0.76 Ám	30 Áin	Multiple, Ribbon	Female Sockets, Receptacle	10 ft	3.05 m	Unshielded	Plug, Male Pins
3M M7NOK-1506R	Gold	15	DB15	0.76 Ám	30 Áin	Multiple, Ribbon	Female Sockets, Receptacle	6 ft	1.83 m	Unshielded	Plug, Male Pins
3M M7NOK-0910R	Gold	9	DB9	0.76 Ám	30 Áin	Multiple, Ribbon	Female Sockets, Receptacle	10 ft	3.05 m	Unshielded	Plug, Male Pins
3M M7NOK-2510J	Gold		DB25	0.76 Ám	30 Áin		Female Sockets, Receptacle	10 ft	3.05 m	Unshielded	Plug, Male Pins
3M M7NOK-0906R	Gold	9	DB9	0.76 Ám	30 Áin	Multiple, Ribbon	Female Sockets, Receptacle	6 ft	1.83 m	Unshielded	Plug, Male Pins
3M M7NOK-0910J	Gold	9	DB9	0.76 Ám	30 Áin		Female Sockets, Receptacle	10 ft	3.05 m	Unshielded	Plug, Male Pins
3M M7NOK-3710J	Gold	37	DB37	0.76 Ám	30 Áin		Female Sockets, Receptacle	10 ft	3.05 m	Unshielded	Plug, Male Pins
3M M7NOK-2510R	Gold		DB25	0.76 Ám	30 Áin	Multiple, Ribbon	Female Sockets, Receptacle	10 ft	3.05 m	Unshielded	Plug, Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

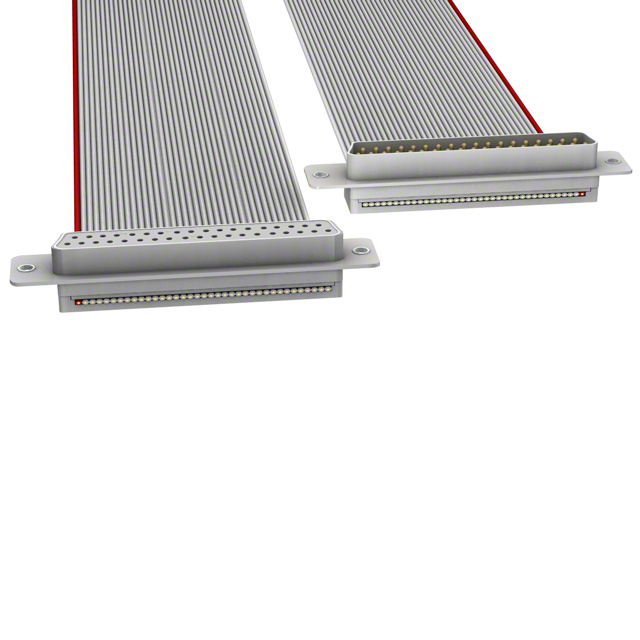

D-Sub Cable Assembly DB37 Gray, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Plug, Male Pins Unshielded
