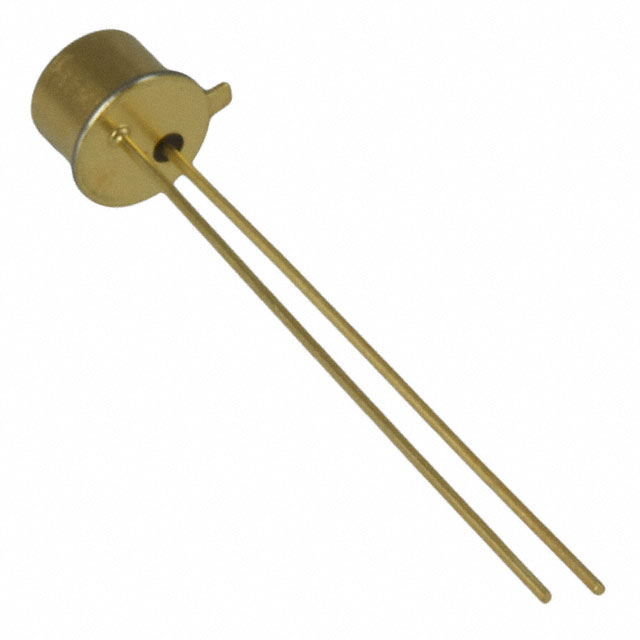

SSL-LXTO46UV3C

Active

Lumex Opto/Components Inc.

EMITTER UV 415NM 30MA TO-46

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

EMITTER UV 415NM 30MA TO-46

Technical Specifications

Parameters and characteristics commom to parts in this series

EMITTER UV 415NM 30MA TO-46

Part	Type	Mounting Type	Package / Case	Current - DC Forward (If) (Max) [Max]	Wavelength	Voltage - Forward (Vf) (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Viewing Angle
Lumex Opto/Components Inc. SSL-LXTO46UV3C	Ultraviolet (UV)	Through Hole	TO-46-2 Lens Top Metal Can	30 mA	415 nm	3.3 V	-40 °C	100 °C	Top View
Lumex Opto/Components Inc. SSL-LXTO46UV2C	Ultraviolet (UV)	Through Hole	TO-46-2 Lens Top Metal Can	50 mA	405 nm	3.7 V	-40 °C	100 °C	Top View	80 °
Lumex Opto/Components Inc. SSL-LXTO46UV1C	Ultraviolet (UV)	Through Hole	TO-46-2 Lens Top Metal Can	30 mA	385 nm	3.3 V	-40 °C	100 °C	Top View

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ultraviolet (UV) Emitter 415nm 3.3V 30mA TO-46-2 Lens Top Metal Can

Technical documentation and resources

No documents available
