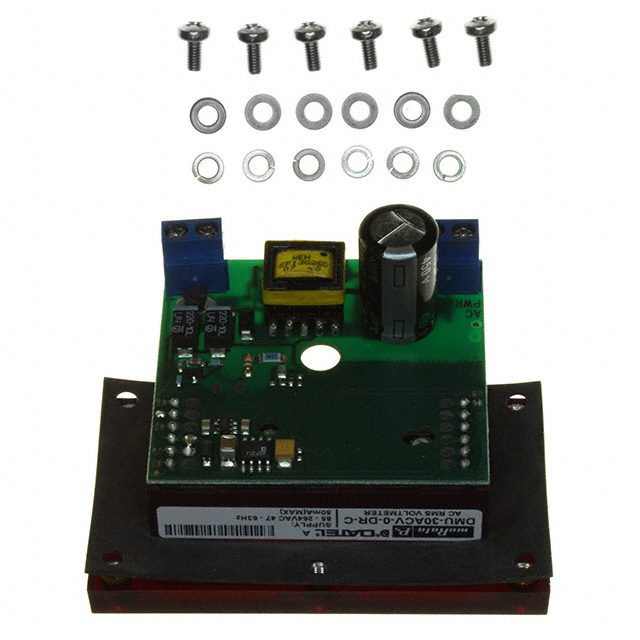

DMU-30ACV-0-DR-C
ActiveMurata Power Solutions Inc.
VOLTMETER 0-19.99VAC LED PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DMU-30ACV-0-DR-C
ActiveMurata Power Solutions Inc.
VOLTMETER 0-19.99VAC LED PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DMU-30ACV-0-DR-C | DMU-30ACV Series |
|---|---|---|
| Display Characters - Height [z] | 14.2 mm | 14.2 mm |
| Display Characters - Height [z] | 0.56 in | 0.56 in |
| Display Type | LED - Red Characters | LED - Red Characters |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Measuring Range [Max] | 19.99 VAC | 19.99 - 199.9 VAC |
| Measuring Range [Min] | 0 VAC | 0 VAC |
| Measuring Type | Voltage | Voltage |
| Number of Characters Per Row | 3.5 | 3.5 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [x] | 53.8 mm | 53.8 mm |
| Panel Cutout Dimensions [y] | 22.3 mm | 22.3 mm |
| Termination Style | Screw Terminal | Screw Terminal |
| Type | Voltmeter | Voltmeter |
| Voltage - Supply [Max] | 264 VAC | 264 VAC |
| Voltage - Supply [Min] | 85 VAC | 85 VAC |
| Weight | 0.079 lb | 0.079 lb |
| Weight | 35.83 g | 35.83 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DMU-30ACV Series
VOLTMETER 0-19.99VAC LED PNL MT
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Measuring Type | Number of Characters Per Row | Weight | Weight | Type | Measuring Range [Min] | Measuring Range [Max] | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Display Characters - Height [z] | Display Characters - Height [z] | Display Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DMU-30ACV-0-DR-C | 85 VAC | 264 VAC | 22.3 mm | 53.8 mm | Voltage | 3.5 | 0.079 lb | 35.83 g | Voltmeter | 0 VAC | 19.99 VAC | IP65 - Dust Tight, Water Resistant | -25 °C | 60 °C | 14.2 mm | 0.56 in | LED - Red Characters | Screw Terminal |
Murata Power Solutions Inc. DMU-30ACV-1-DR-C | 85 VAC | 264 VAC | 22.3 mm | 53.8 mm | Voltage | 3.5 | 0.079 lb | 35.83 g | Voltmeter | 0 VAC | 199.9 VAC | IP65 - Dust Tight, Water Resistant | -25 °C | 60 °C | 14.2 mm | 0.56 in | LED - Red Characters | Screw Terminal |
Description
General part information
DMU-30ACV Series
Voltmeter LED - Red Characters Display Panel Mount
