Description
General part information

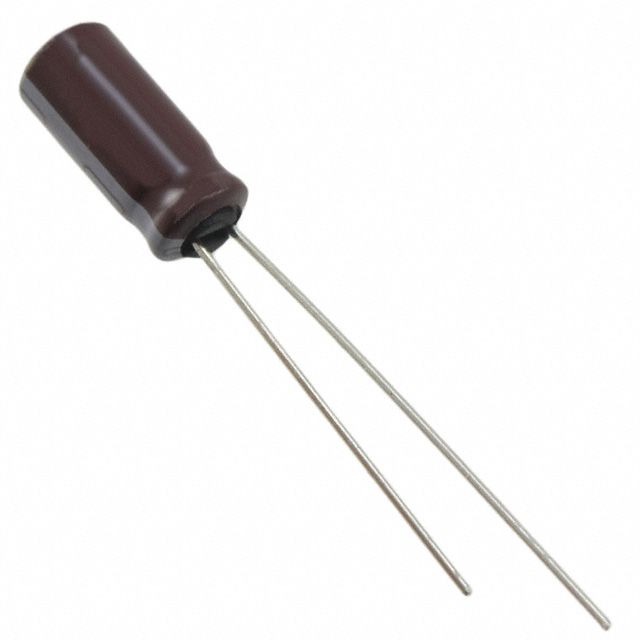

KY50VB10RM5X11LL
10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | KY50VB10RM5X11LL |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Height - Seated (Max) | 0.433 in |
| Impedance | 1.5 Ohm |
| Lead Spacing | 0.079 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 100 mA, 40 mA |
| Size / Dimension Diameter | 0.197 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
