PE4084
ActivePasternack

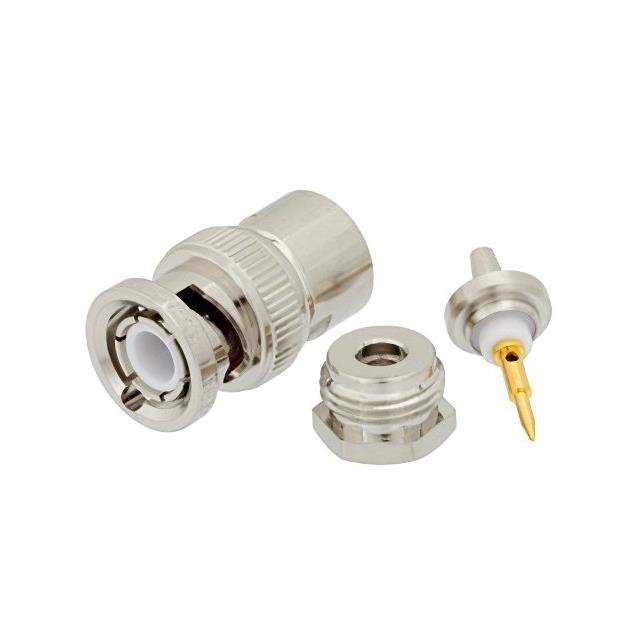

BNC MALE CONNECTOR CLAMP/SOLDER
PE4084
ActivePasternack
BNC MALE CONNECTOR CLAMP/SOLDER
Description
General part information
PE4084
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4084 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-174, LMR-100, CT 100, 316 |
| Cable Group Current Rating | 188 A |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Clamp |
| Voltage Rating | 500 V |
