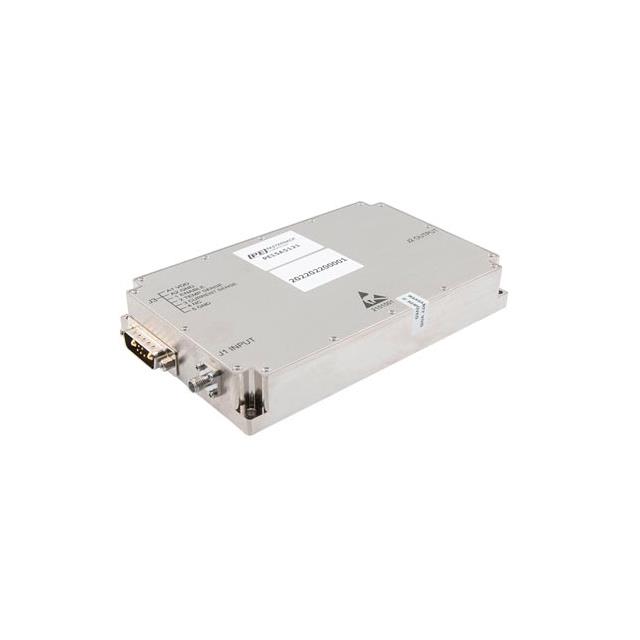

PE15A5121
ActivePasternack
47 DB GAIN, 50 WATT PSAT, 2 GHZ
PE15A5121
ActivePasternack
47 DB GAIN, 50 WATT PSAT, 2 GHZ
Description
General part information
PE15A5121
RF Amplifier IC General Purpose 2GHz ~ 6GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A5121 |
|---|---|
| Current - Supply | 9 A |
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 2 GHz |
| Gain | 47 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
