2280323

Active

Phoenix Contact

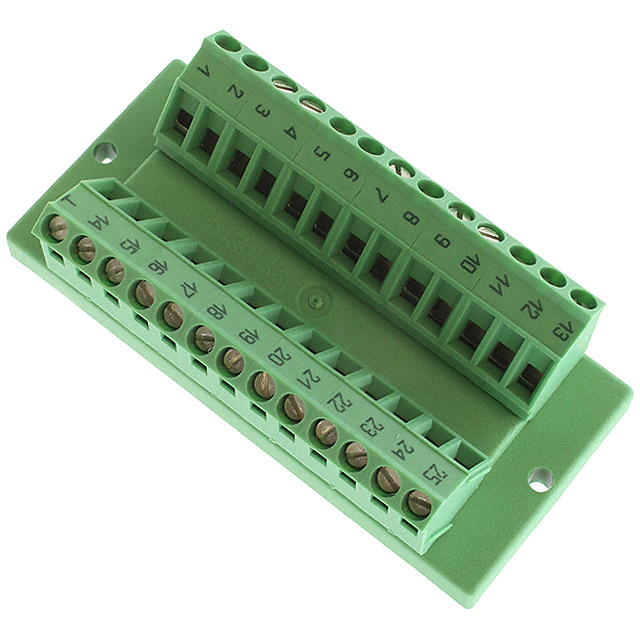

INTERFACE MODULE, DFLK-D25 SUB/B ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Phoenix Contact

INTERFACE MODULE, DFLK-D25 SUB/B ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2280323	DFLK-D25 Series

Convert From (Adapter End)	Screw Connection, 25 Pos, 2 Rows, Terminal Blocks	Screw Connection, 25 Pos, 2 Rows, Terminal Blocks, Screwless Connection
Convert From (Adapter End)	-	2 - 25 Rows
Convert To (Adapter End)	2 Rows, 25 positions	2 - 25 Rows
Convert To (Adapter End)	D-Sub, Female Sockets	D-Sub, Female Sockets, 2 Rows, Male Pins, 25 Pos
Mounting Type	Feed Through, Panel Mount	Feed Through, Panel Mount
Wire Gauge [Max]	24 AWG	24 - 30 AWG
Wire Gauge [Min]	12 AWG	12 AWG

INTERFACE MODULE, DFLK-D25 SUB/B ROHS COMPLIANT: YES

Part	Wire Gauge [Min]	Wire Gauge [Max]	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)	Mounting Type	Convert From (Adapter End)
Phoenix Contact 2280323	12 AWG	24 AWG	2 Rows, 25 positions	D-Sub, Female Sockets	2 Rows, 25 Pos, Screw Connection, Terminal Blocks	Feed Through, Panel Mount
Phoenix Contact 2903055	12 AWG	24 AWG		2 Rows, 25 Pos, D-Sub, Male Pins	Screwless Connection, Terminal Blocks	Feed Through, Panel Mount	2 Rows, 25 Pos
Phoenix Contact 2280310	12 AWG	24 AWG		2 Rows, 25 Pos, D-Sub, Male Pins	2 Rows, 25 Pos, Screw Connection, Terminal Blocks	Feed Through, Panel Mount
Phoenix Contact 2903067	12 AWG	30 AWG	2 Rows, 25 positions	D-Sub, Female Sockets	Screwless Connection, Terminal Blocks	Feed Through, Panel Mount	2 Rows, 25 Pos

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Blocks, Screw Connection, 25 Pos, 2 Rows To D-Sub, Female Sockets, 25 Pos, 2 Rows
