294-4093/3025-000
ActiveWAGO Corporation
LIGHTING CONNECTOR; PUSH-BUTTON,
294-4093/3025-000
ActiveWAGO Corporation
LIGHTING CONNECTOR; PUSH-BUTTON,
Description
General part information
294-4093/3025-000

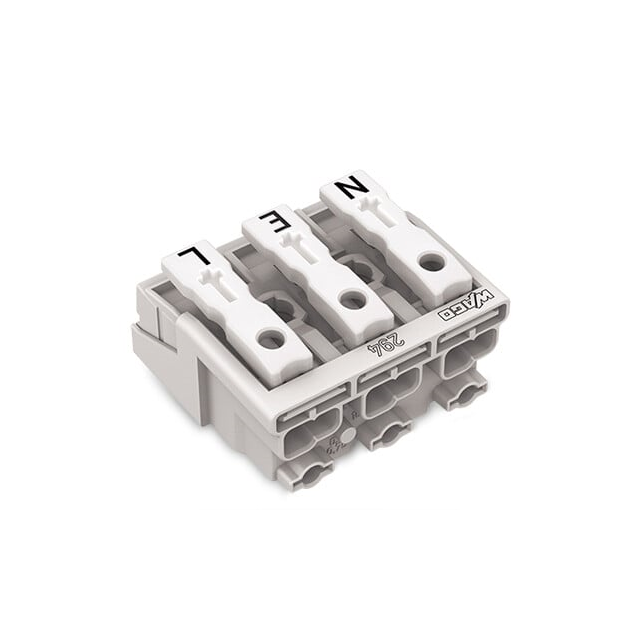

SSL Connector 3 Position Receptacle, Push-In and Insert Board to Cable/Wire Push and Insert
Technical Specifications
Parameters and characteristics for this part
| Specification | 294-4093/3025-000 |
|---|---|
| Connector Type | Receptacle, Push-In, Insert |
| Contact Finish | Tin |
| Contact Material | Electrolytic Copper |
| Current Rating | 24 A |
| Housing Color | White |
| Housing Material | PC, Polycarbonate |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature | 85 °C |
| Style | Cable/Wire, Board |
| Termination | Push and Insert |
| Voltage Rating | 500 V |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
