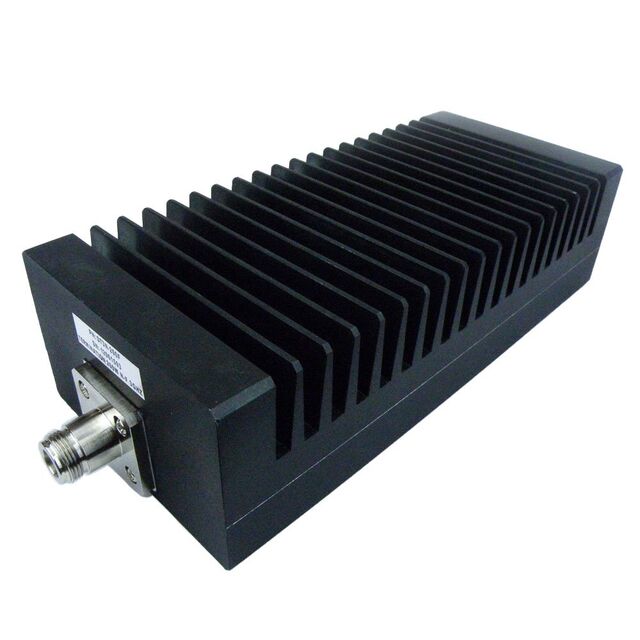

ST3D-200F
ActiveFairview Microwave
TERM JACK 7/16 DIN 1.25 VSWR
ST3D-200F
ActiveFairview Microwave
TERM JACK 7/16 DIN 1.25 VSWR
Description
General part information
ST3D-200F
Terminator Coax Connector Jack, Female Socket 7/16 DIN 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | ST3D-200F |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Connector Style | 7/16 DIN |
| Connector Type | Jack, Female Socket |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Frequency - Max | 3 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Cap, Free Hanging |
