Description

General part information

APAES915R6460C16-T

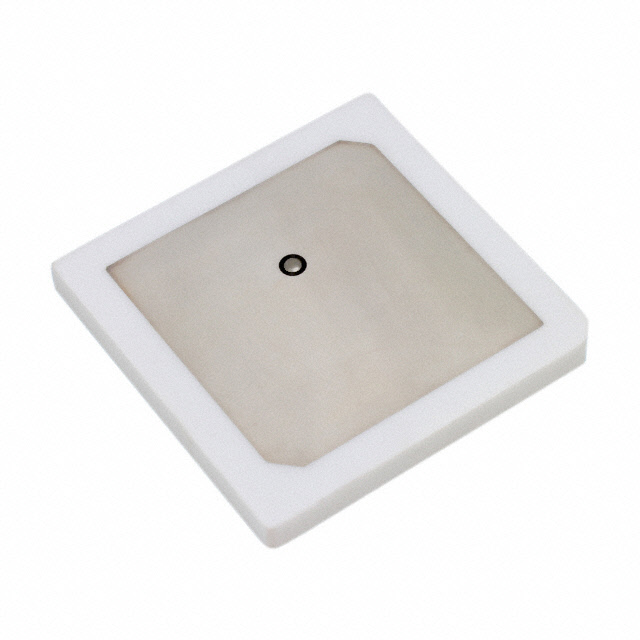

RF ANTENNA Ceramic Patch Pin Adhesive

Technical Specifications

Parameters and characteristics for this part

SpecificationAPAES915R6460C16-T
Antenna TypeCeramic Patch
Frequency (Center/Band)915 MHz
Frequency GroupUHF
Frequency Group Maximum (UHF)1 GHz
Frequency Group Minimum (UHF)300 MHz
Frequency Range (Max)928 MHz
Frequency Range (Min)902 MHz
Gain3.5 dBic
Height (Max)0.236 in
Mounting TypeAdhesive
Number of Bands1
Return Loss-10 dB
TerminationPin
VSWR1.5
