929975-1
ActiveTE Connectivity AMP Connectors

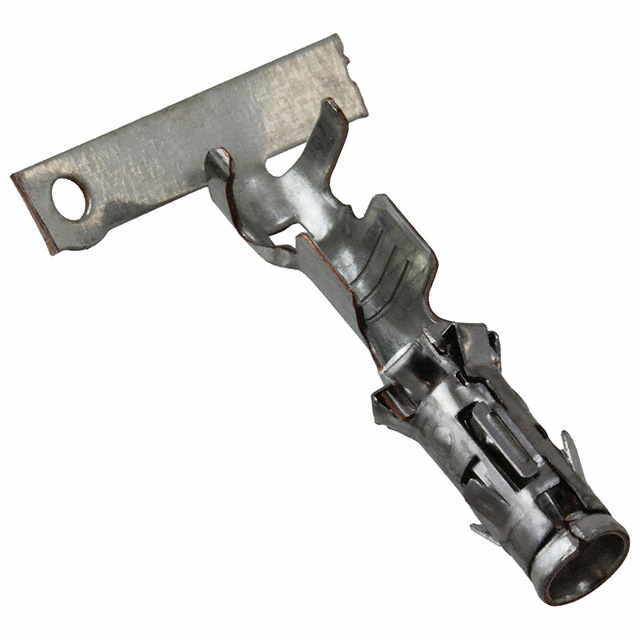

CONTACT SOCKET 13-17AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
929975-1
ActiveTE Connectivity AMP Connectors
CONTACT SOCKET 13-17AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 929975-1 | 929975 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | 39.4 Áin | 31.5 - 39.4 Áin |
| Contact Finish Thickness | 1 Ám | 0.8 - 1 Ám |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Size | 2.5 mm | 2.5 mm |
| Contact Termination | Crimp | Crimp |
| Contact Type | Socket | Socket |
| Features | Insulation Support | Insulation Support |
| Termination Finish | Tin | Tin |
| Type | Power, Stamped | Power, Stamped |
| Wire Gauge or Range - AWG [Max] | 17 AWG | 17 AWG |
| Wire Gauge or Range - AWG [Min] | 13 AWG | 13 AWG |
| Wire Gauge or Range - mm˛ | - | 1 mm˛ |
| Wire Gauge or Range - mm˛ | - | 2.5 mm˛ |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 1 mm² | 1 mm² |
929975 Series
CONTACT SOCKET 13-17AWG CRIMP
| Part | Contact Material | Features | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Contact Type | Contact Finish | Contact Size | Contact Finish Thickness | Contact Finish Thickness | Termination Finish | Type | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Contact Termination | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 929975-1 | Copper Alloy | Insulation Support | 1 mm² | 2.5 mm² | Socket | Tin | 2.5 mm | 39.4 Áin | 1 Ám | Tin | Power, Stamped | 17 AWG | 13 AWG | Crimp | ||
TE Connectivity AMP Connectors 929975-8 | Copper Alloy | Insulation Support | Socket | Gold | 2.5 mm | 31.5 µin | 0.8 µm | Tin | Power, Stamped | 17 AWG | 13 AWG | Crimp | 1 mm˛ | 2.5 mm˛ | ||
TE Connectivity AMP Connectors 929975-4 | Copper Alloy | Insulation Support | Socket | Tin | 2.5 mm | 39.4 Áin | 1 Ám | Tin | Power, Stamped | Crimp | 1 mm˛ | 2.5 mm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.29 | |
| 10 | $ 0.25 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 3000 | $ 0.16 | ||
| 6000 | $ 0.15 | |||
| 15000 | $ 0.13 | |||
| 30000 | $ 0.13 | |||
Description
General part information
929975 Series
Socket Contact 13-17 AWG Size 2.5mm Crimp Tin
