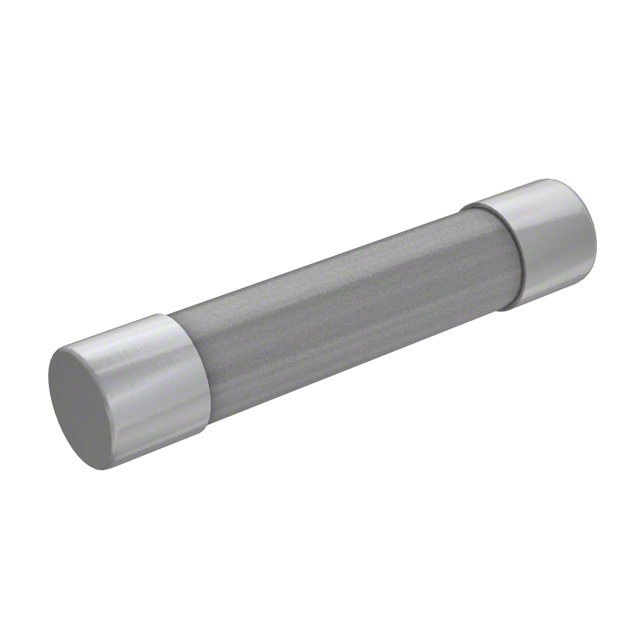

BK/GBB-9
ObsoleteEaton - Electronics Division
FUSE CERM 9A 250VAC 125VDC 3AB
BK/GBB-9
ObsoleteEaton - Electronics Division
FUSE CERM 9A 250VAC 125VDC 3AB
Description
General part information
BK/GBB-9
9 A 250 V AC 125 V DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/GBB-9 |
|---|---|
| Approval Agency | CSA, UR |
| Breaking Capacity | 10 kA |
| Current Rating | 9 A |
| DC Cold Resistance | 0.0107 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Requires Holder |
| Package / Case | 3AG, 1/4" x 1-1/4", 3AB |
| Package Diameter | 0.25 in |
| Package Length | 1.25 in |
| Package Name | 3AB, 3AG |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.25 in |
| Size / Dimension Length | 1.25 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
