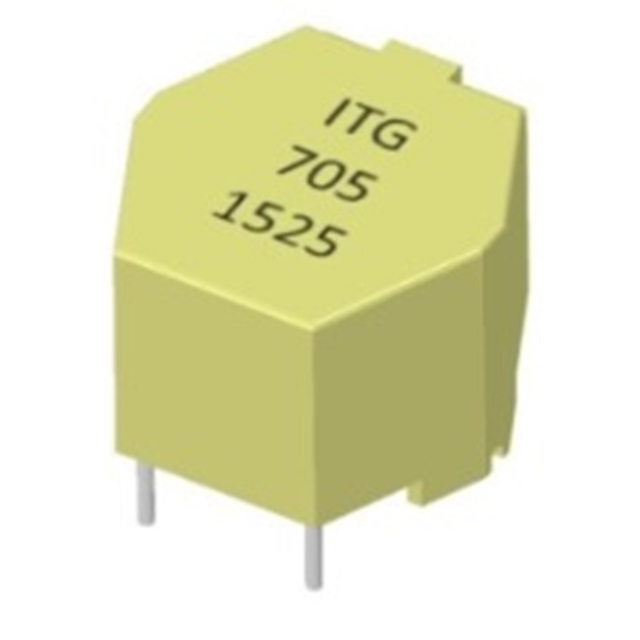

DCM181713H-682NHF
ActiveITG Electronics, Inc.
6,800UH, 280MOHM, 1.2AMP DIP CMC
DCM181713H-682NHF
ActiveITG Electronics, Inc.
6,800UH, 280MOHM, 1.2AMP DIP CMC
Description
General part information
DCM181713H-682NHF
6.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.2A DCR 280mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | DCM181713H-682NHF |
|---|---|
| Current Rating (Max) | 1.2 A |
| DC Resistance (DCR) (Max) | 280 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.512 in |
| Inductance | 6.8 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.689 in |
