Description
General part information
PE9308

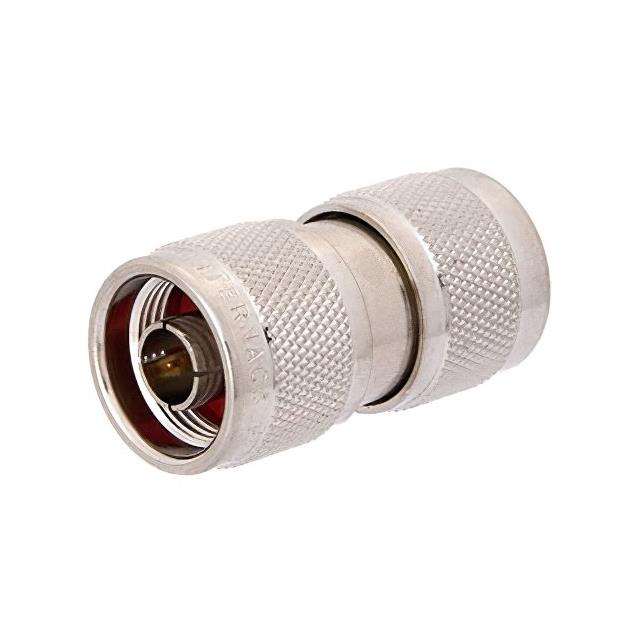

Adapter Coaxial Connector N Plug, Male Pin To N Plug, Male Pin 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9308 |
|---|---|
| Adapter Series | N to N |
| Adapter Type | Plug to Plug |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | N Plug, Male Pin |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | N Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 1.5 GHz |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
