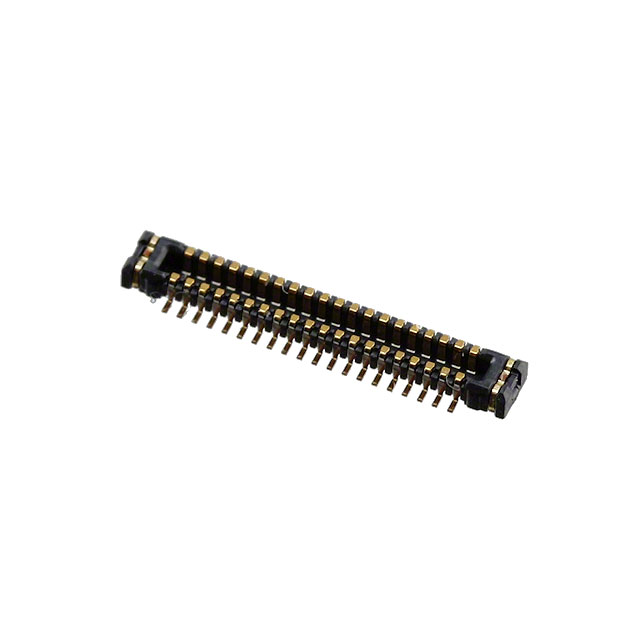

SLIMSTACK BOARD-TO-BOARD PLUG, 0.40MM PITCH, SURFACE MOUNT, DUAL ROW, VERTICAL STACKING, 1.00MM STACKING HEIGHT, WITH SOLDER TABS, WITH VACUUM TAPE, 40 CIRCUITS

Find alt

Alpha

5024304030

Active

Molex

SLIMSTACK BOARD-TO-BOARD PLUG, 0.40MM PITCH, SURFACE MOUNT, DUAL ROW, VERTICAL STACKING, 1.00MM STACKING HEIGHT, WITH SOLDER TABS, WITH VACUUM TAPE, 40 CIRCUITS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

502430 Series

40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

Technical Specifications

Parameters and characteristics for this part

Specification	5024304030

Connector Type	Plug, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 µin
Features	Solder Retention
Height Above Board	0.031 in
Mated Stacking Height	1 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch	0.016 in

502430 Series

Part	Mated Stacking Height	Height Above Board	Connector Type	Contact Finish	Number of Positions	Features	Contact Finish Thickness	Mounting Type	Number of Rows	Pitch
Molex 5024308010	1 mm	0.031 in	Outer Shroud Contacts Plug	Gold	80	Solder Retention	4 µin	Surface Mount	2	0.016 in
Molex 5024302010	1 mm	0.031 in	Outer Shroud Contacts Plug	Gold	20	Solder Retention	4 µin	Surface Mount	2	0.016 in
Molex 5024307012	1 mm	0.031 in	Outer Shroud Contacts Plug	Gold	70	Solder Retention	3.94 µin	Surface Mount	2	0.016 in
Molex 5024302210	1 mm	0.031 in	Outer Shroud Contacts Plug	Gold	22	Solder Retention	4 µin	Surface Mount	2	0.016 in
Molex 5024301412	1 mm	0.031 in	Outer Shroud Contacts Plug	Gold	14	Solder Retention	4 µin	Surface Mount	2	0.016 in
Molex 5024306412	1 mm	0.031 in	Outer Shroud Contacts Plug	Gold	64	Solder Retention	4 µin	Surface Mount	2	0.016 in
Molex 5024300822	1 mm	0.031 in	Outer Shroud Contacts Plug	Gold	8	Solder Retention	4 µin	Surface Mount	2	0.016 in
Molex 5024302230	1 mm	0.031 in	Outer Shroud Contacts Plug	Gold	22	Solder Retention	4 µin	Surface Mount	2	0.016 in
Molex 5024302030	1 mm	0.031 in	Outer Shroud Contacts Plug	Gold	20	Solder Retention	4 µin	Surface Mount	2	0.016 in
Molex 5024303210	1 mm	0.031 in	Outer Shroud Contacts Plug	Gold	32	Solder Retention	4 µin	Surface Mount	2	0.016 in
