AIAP-03-472K
ActiveAbracon LLC
FIXED IND 4.7MH 390MA 3.19 OHM / BULK ROHS COMPLIANT: YES
AIAP-03-472K
ActiveAbracon LLC
FIXED IND 4.7MH 390MA 3.19 OHM / BULK ROHS COMPLIANT: YES
Description
General part information
AIAP-03-472K

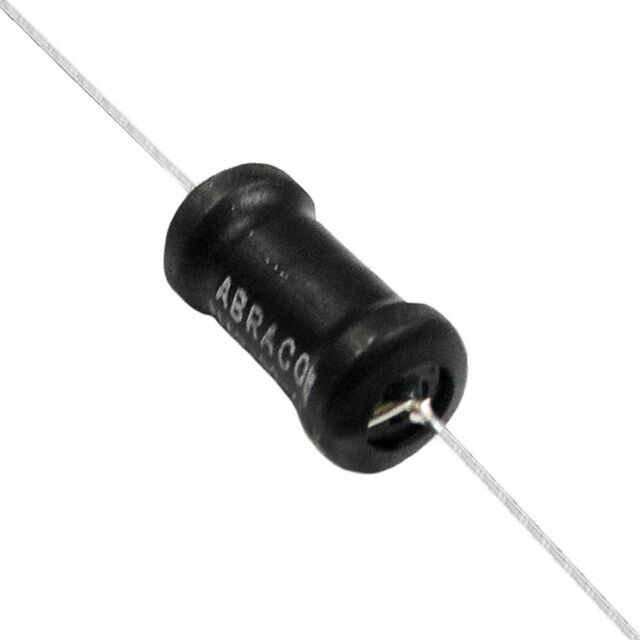

4.7 mH Unshielded Wirewound Inductor 390 mA 3.19Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | AIAP-03-472K |
|---|---|
| Current Rating | 390 mA |
| DC Resistance (DCR) (Max) | 3.19 Ohm |
| Inductance | 4.7 mH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.449 in |
| Size / Dimension Length | 0.902 in |
| Tolerance | 10 % |
| Type | Wirewound |
